DTC 13
DTC 13

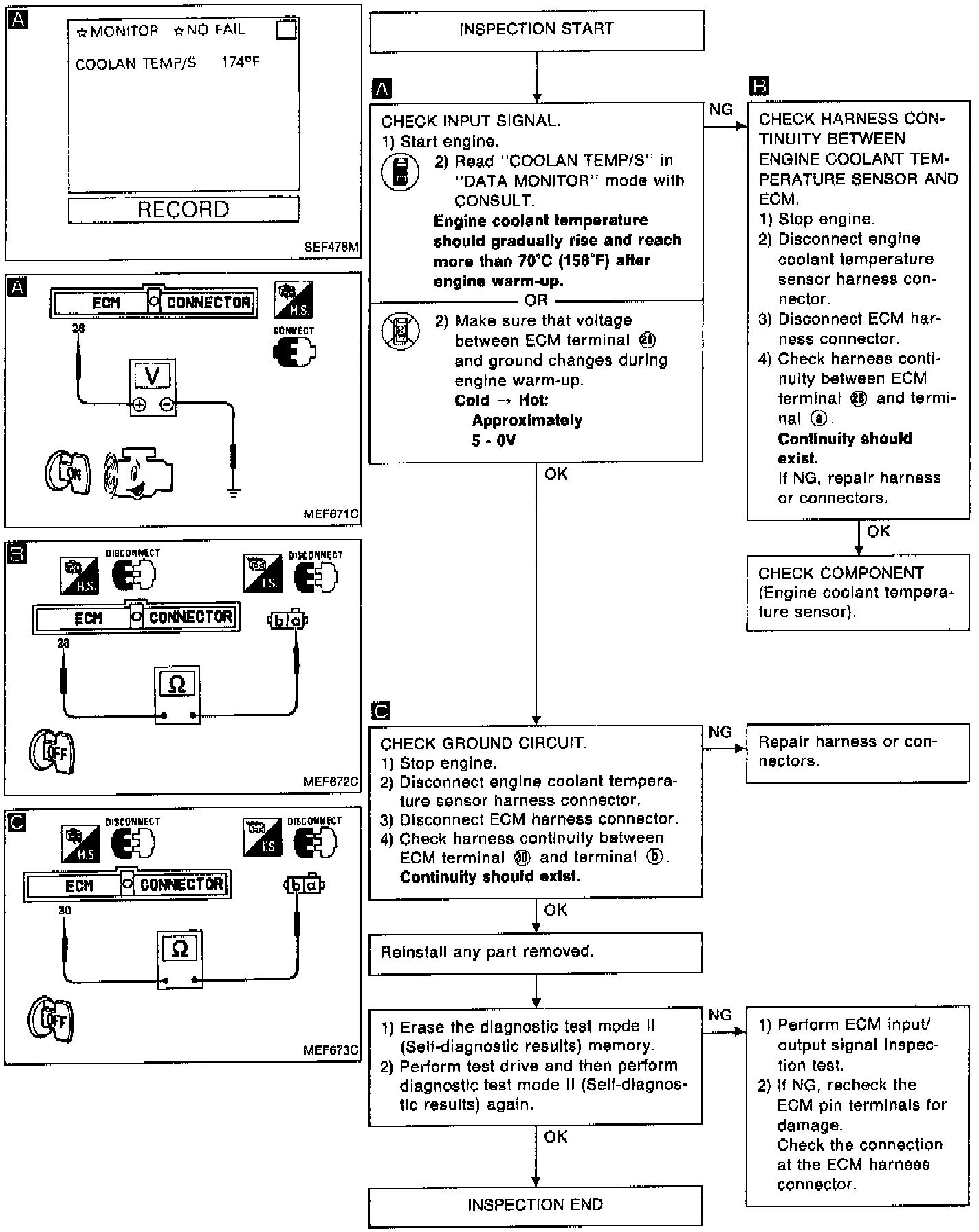

DTC 13 Engine Temperature Sensor Diagnostic Chart:
DIAGNOSTIC CHART
Engine Coolant Temperature Sensor Circuit:
CIRCUIT DIAGRAM

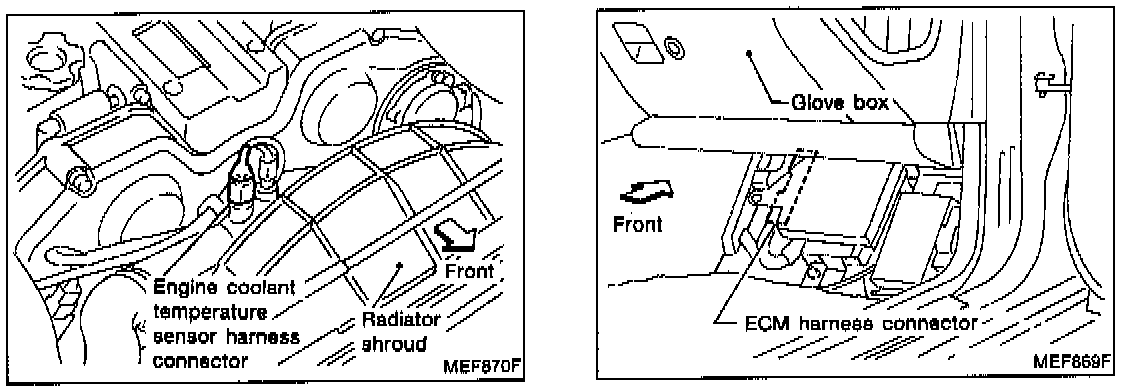

Harness Layout:
HARNESS LAYOUT
