DTC 12
DTC 12

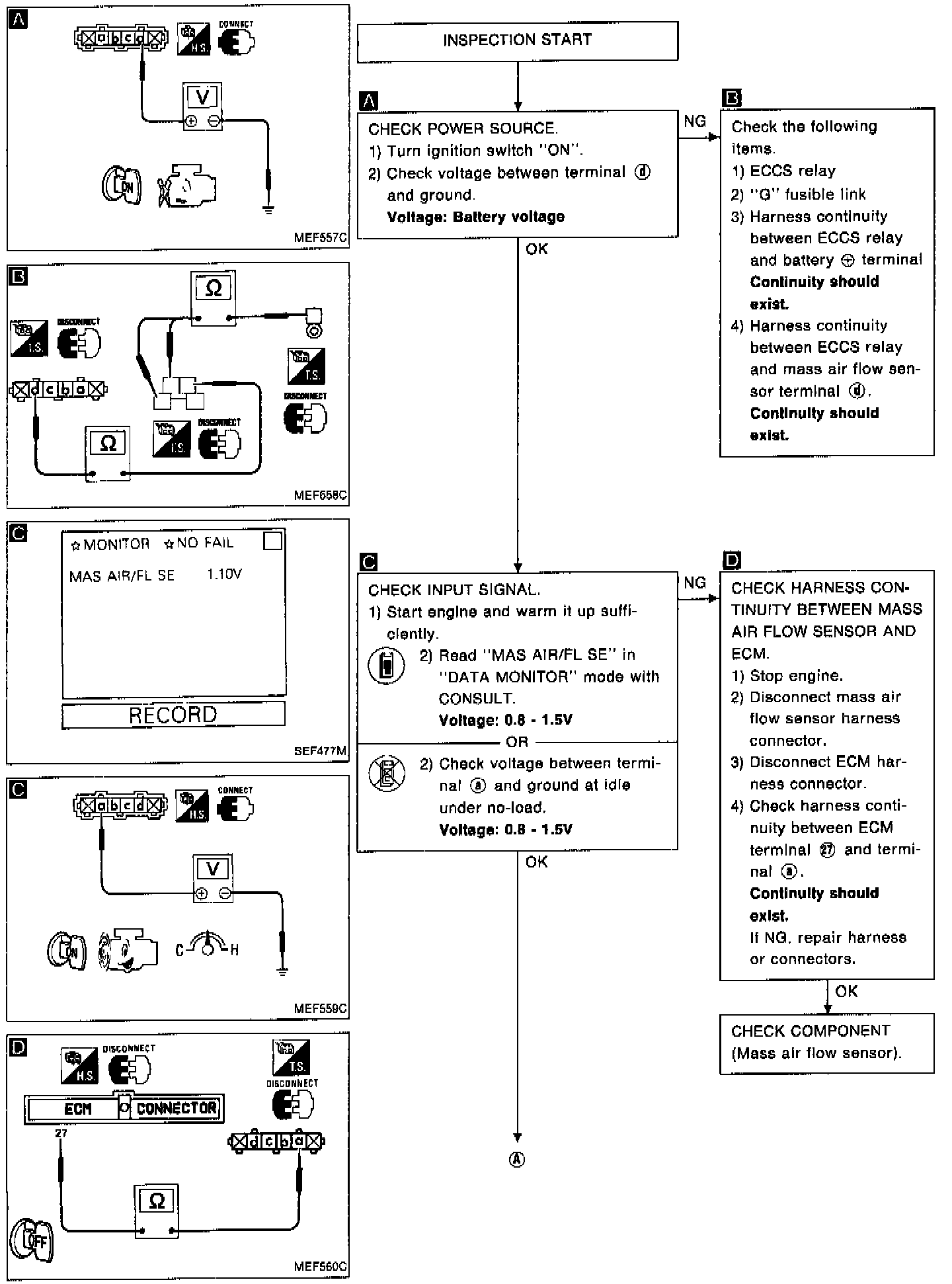

DTC 12 Air Flow Meter Diagnostic Chart:
DTC 12 Air Flow Meter Diagnostic Chart:

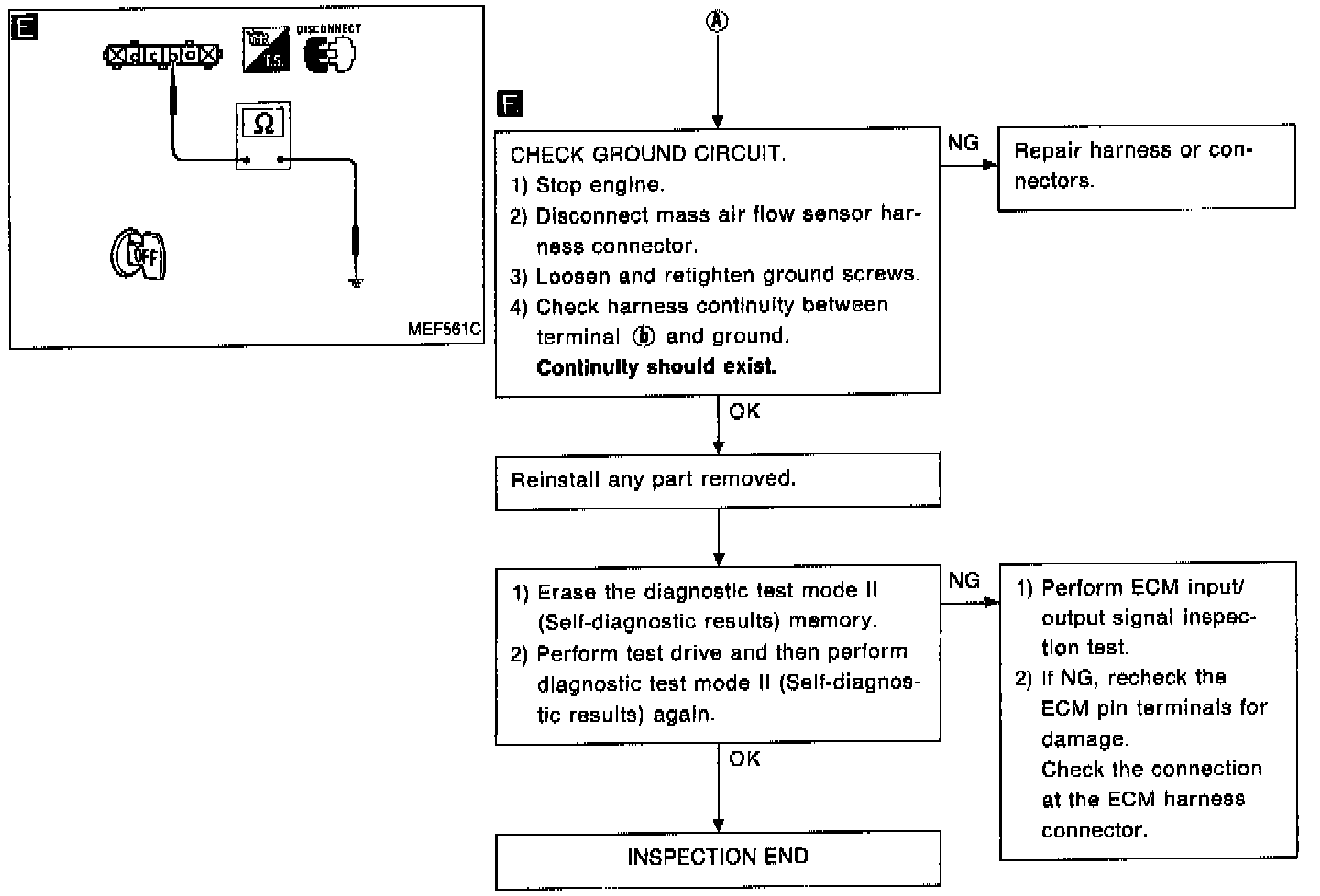

DIAGNOSTIC CHART
Mass Air Flow Sensor Circuit:
CIRCUIT DIAGRAM

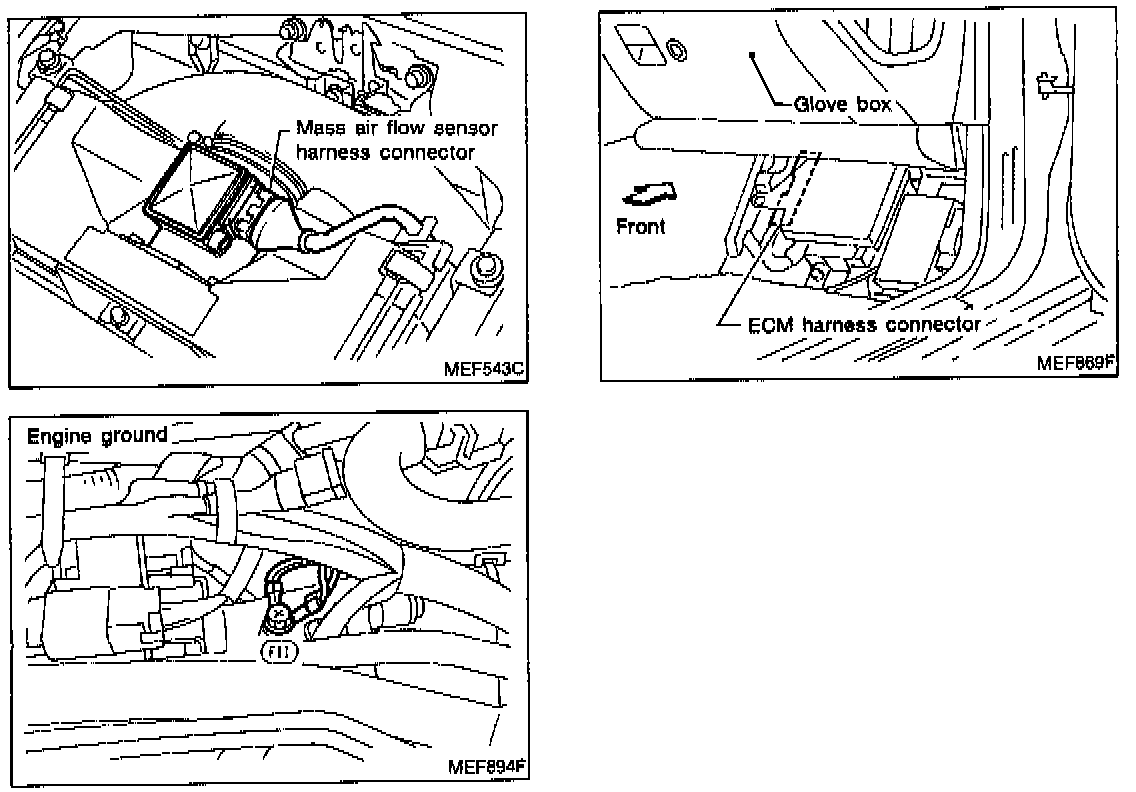

Harness Layout:
HARNESS LAYOUT
