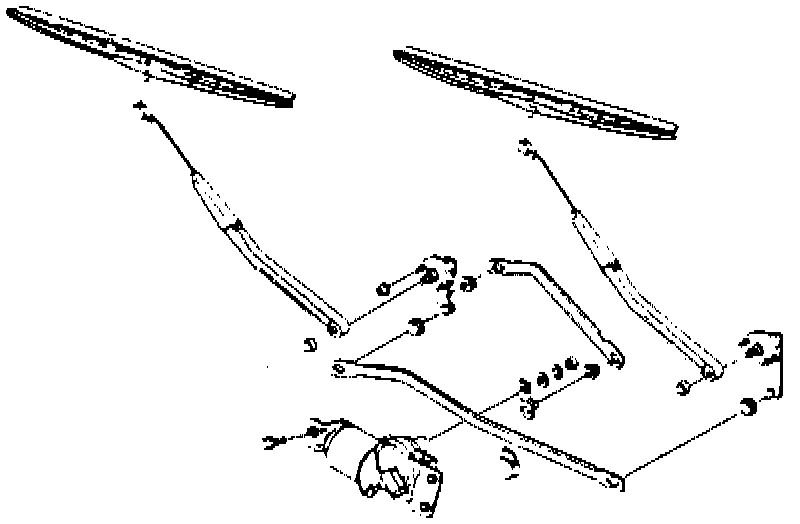

Fig. 4 Windshield Wiper System:

Refer to Fig. 4 for typical wiper system exploded view.
1. Remove wiper arms.
2. Disconnect electrical connector from motor, then remove top grille retaining screws and top grille.
3. Remove wiper motor mounting bolts and pull motor away from firewall.
4. Disconnect motor shaft from linkage taking care not to bend linkage.
5. Remove cowl top grille.
6. Remove flange nuts retaining pivot to cowl top.
7. Remove wiper motor linkage.
8. Reverse procedure to install.
