Valve Body: Testing and Inspection

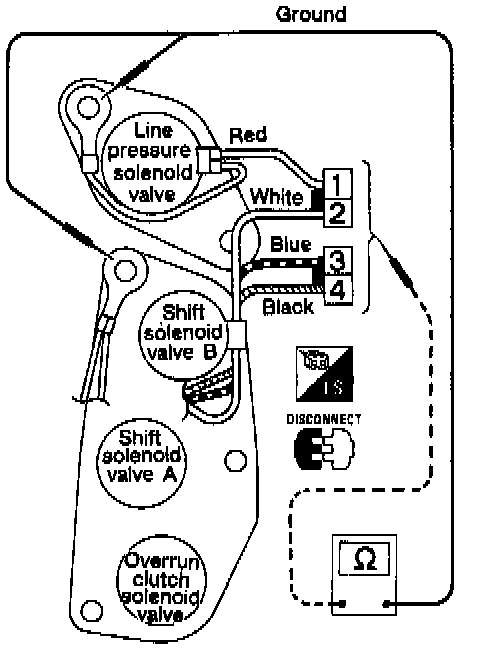

Solenoid Assembly Test:

3-UNIT SOLENOID ASSEMBLY (Shift solenoid valve A, B and overrun clutch solenoid valve) AND LINE PRESSURE SOLENOID VALVE

^ Check resistance between terminals of each solenoid.
