Audio - Improved Stereo Mounting Screws
Classification: EL94-007Section: Electrical System
Reference: TECHNICAL BULLETIN NTB94-034
Models: All models, except Quest
Date: March 23, 1994
AUDIO HEAD-UNIT MOUNTING SCREWS
APPLIED MODELS:
All models, except Quest
APPLIED DATE:
Built before March 1, 1993
SERVICE INFORMATION
The audio head-unit mounting screws may be difficult to remove on some vehicles. Improved mounting screws (strengthened material) have been applied to March, 1993 production.
SERVICE PROCEDURE

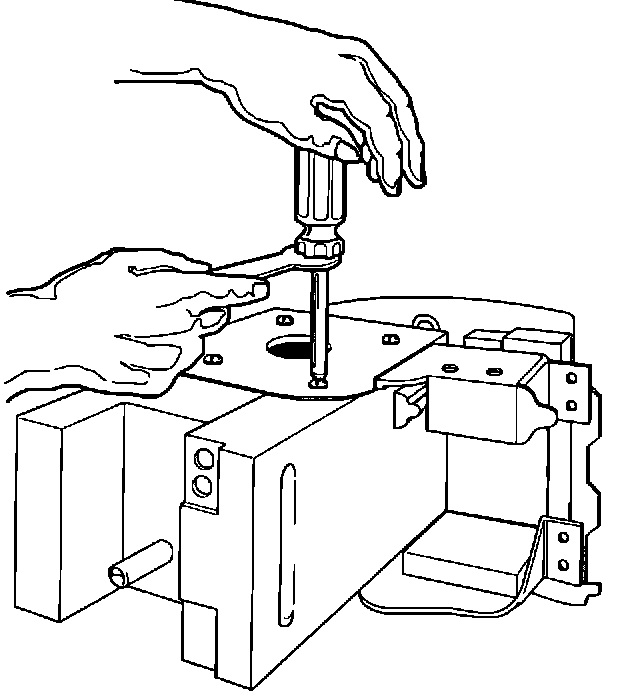

If the head-unit mounting screws are difficult to remove, please use a screwdriver and wrench with 121-154 lbs. (55-70 Kg) of downward force (see illustration). If this method is unsuccessful, use an automatic center punch with a hammer to loosen the screws (Automatic center punch is available from Matco -- # CP79). When installing the replacement head-unit, use the countermeasure screw listed.
PARTS INFORMATION
Description Part Number
Screw 01422-00031
