Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Technical Service Bulletins >> All Technical Service Bulletins >> A/C - Retrofit Service Procedures >> Service Procedures >> Checking and Adjusting

Checking and Adjusting

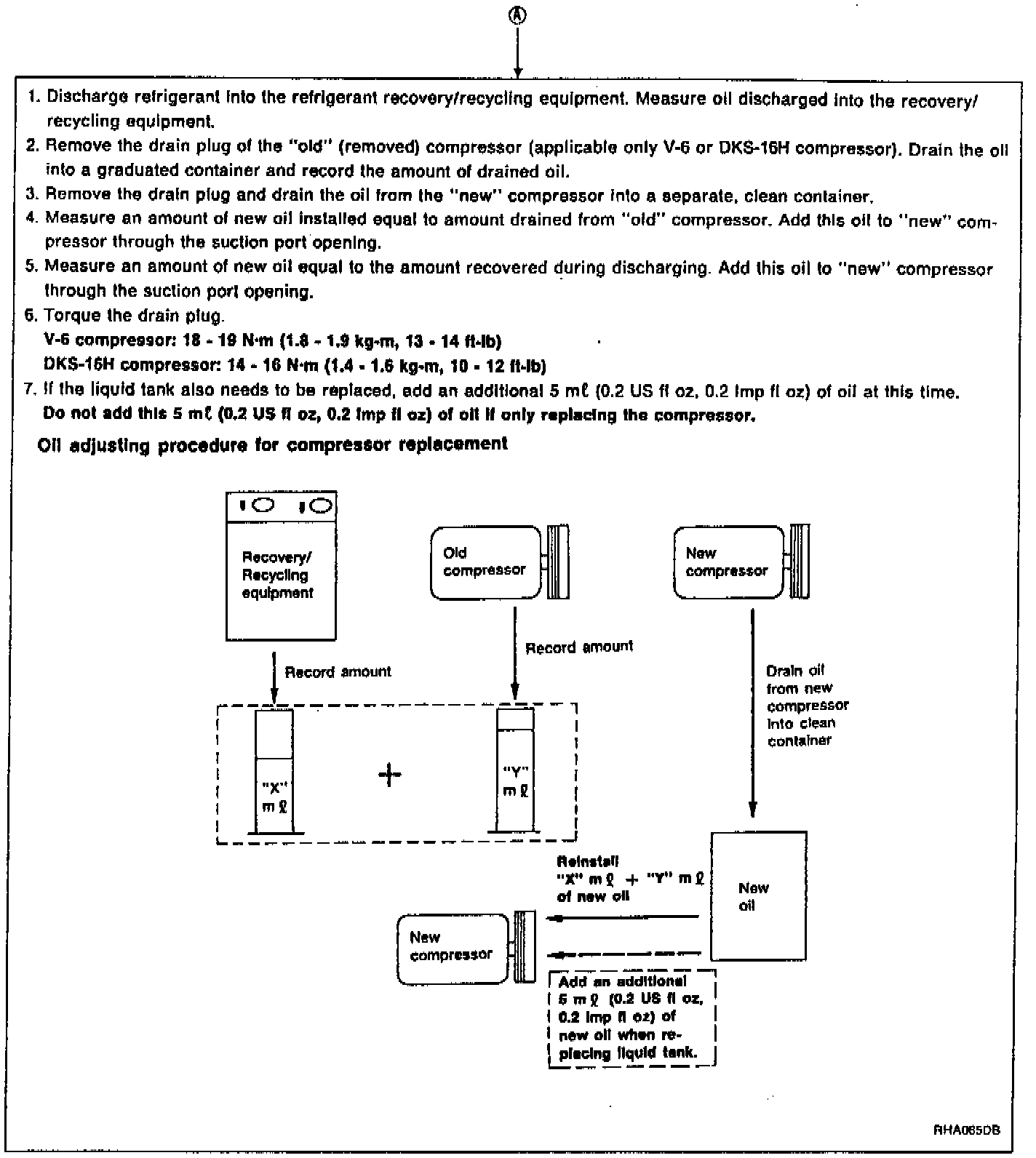

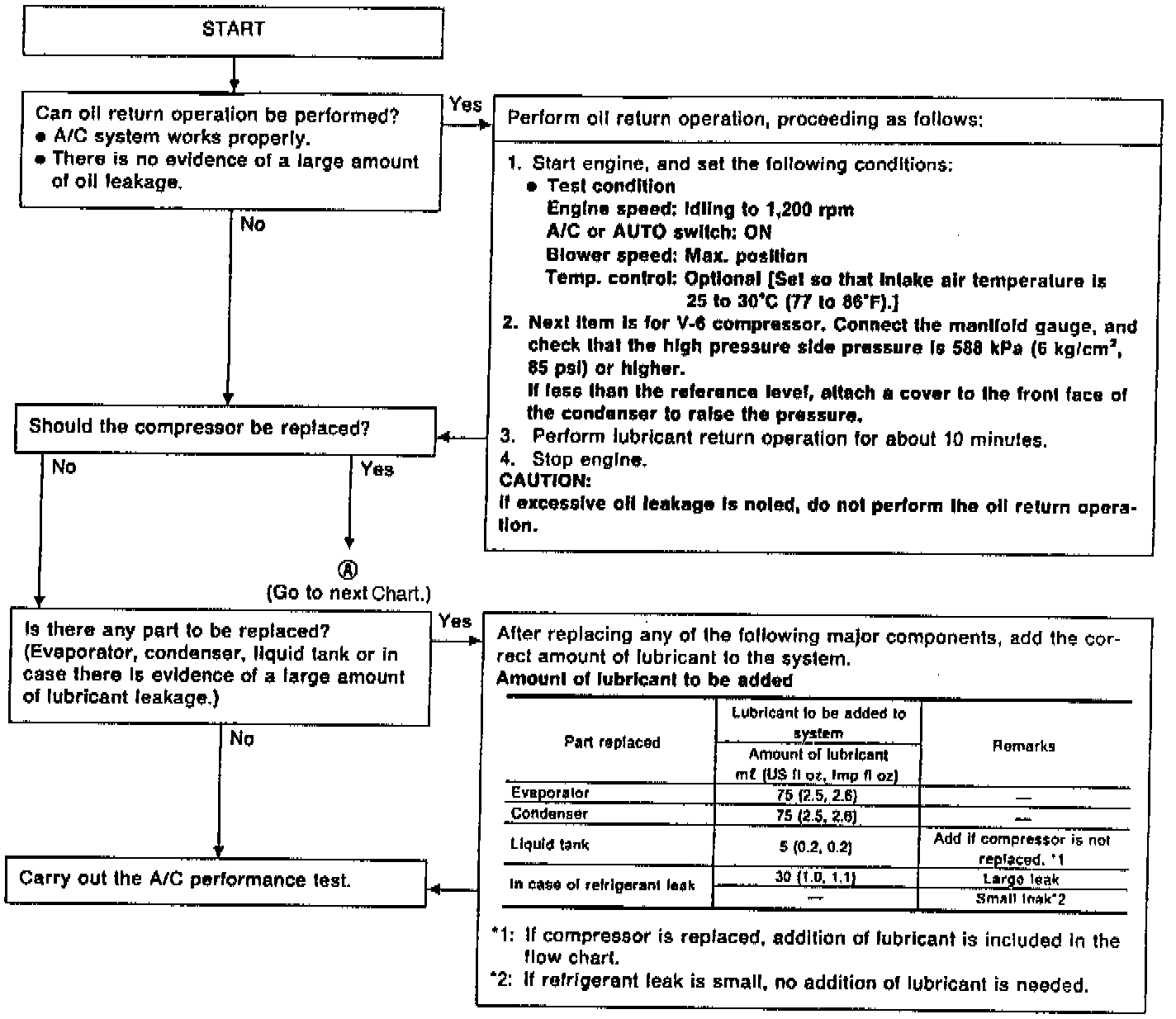

Adjusting the lubricant quantity to the flowchart shown.
