Front

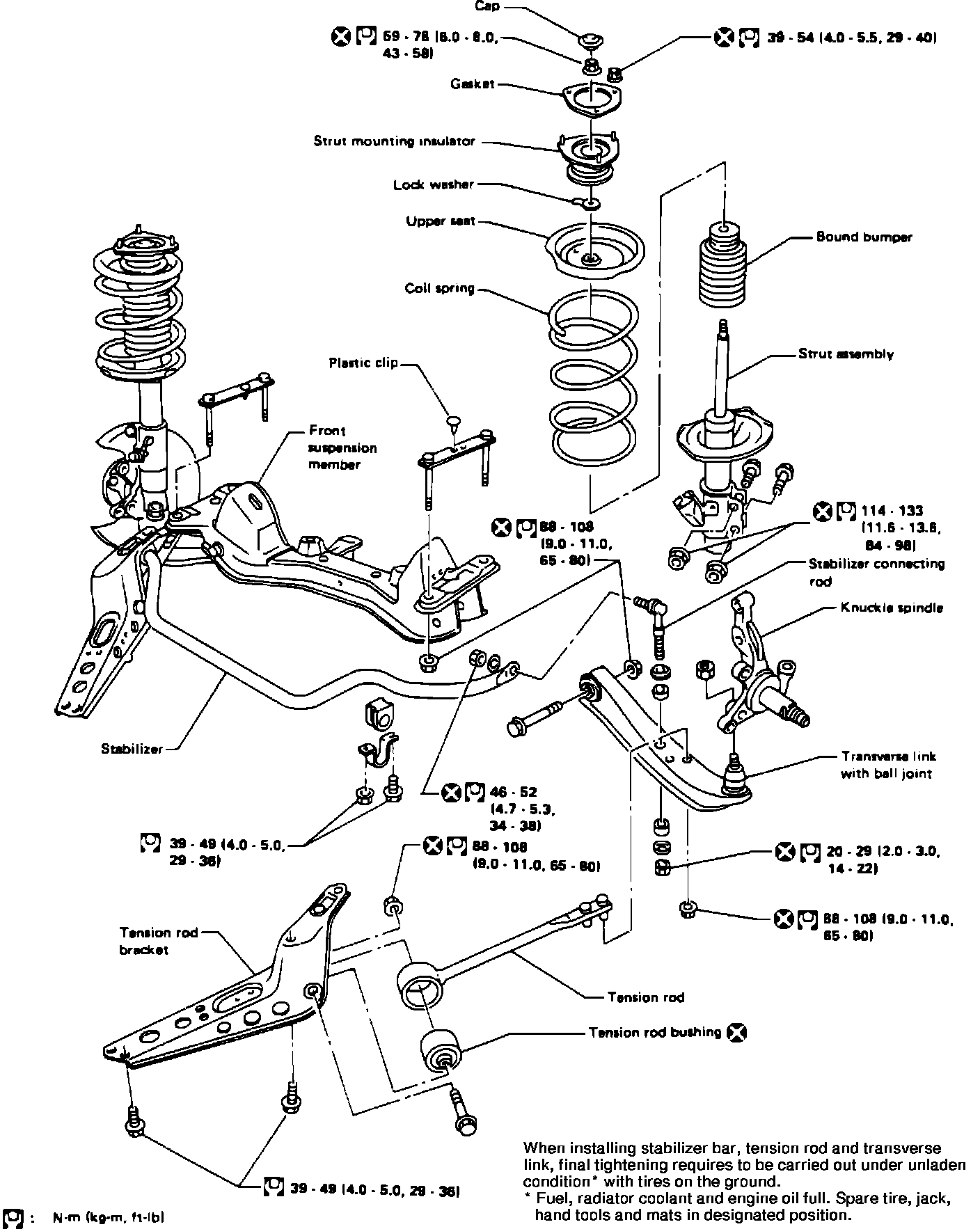

Fig. 1 Front Suspension.:

1. Raise and support front of vehicle and remove wheel.
2. Disconnect brake line from strut.
3. Place alignment marks on strut lower bracket and camber adjusting pin.
4. Remove strut to steering knuckle attaching bolts, then separate strut from knuckle, Fig. 1.
5. Remove strut to strut tower attaching nuts, then strut assembly from vehicle.
6. Reverse procedure to install.
