Radius Arm: Service and Repair

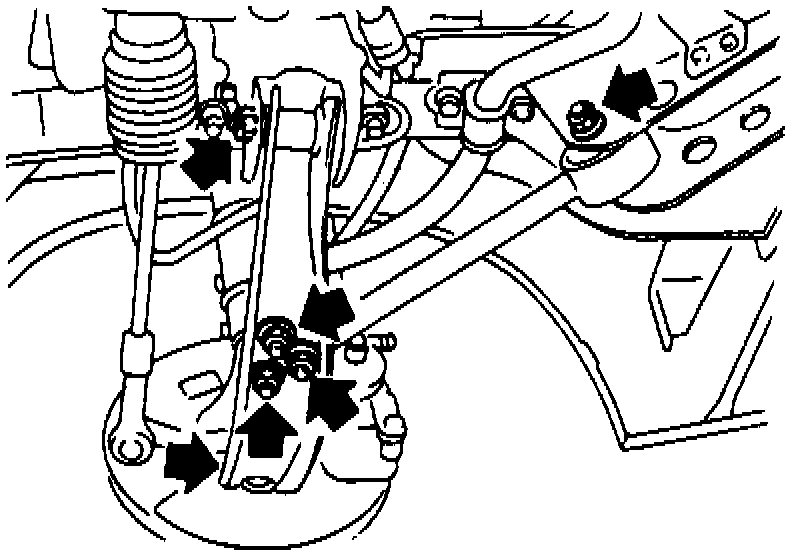

Fig. 4 Tension Rod & Stabilizer Bar Removal:

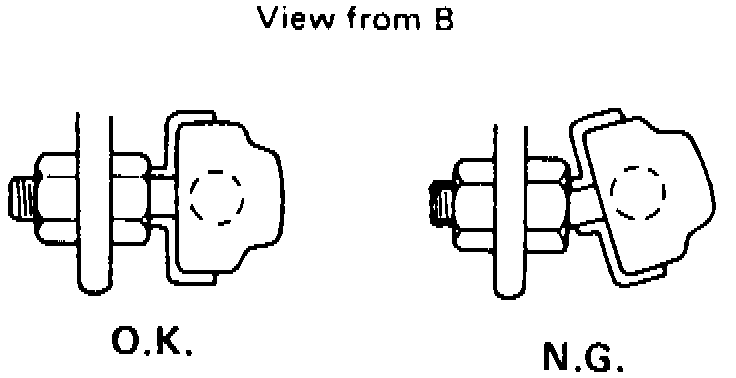

Fig. 5 Stabilizer Bar Installation:

1. Raise and support vehicle.
2. Remove tension rod and stabilizer bar attaching bolts, Fig. 4.
3. Remove tension rod and stabilizer bar from vehicle.
4. Reverse procedure to install, ensure stabilizer bar is installed with ball joint socket properly placed, Fig. 5.
