Lower, Rear

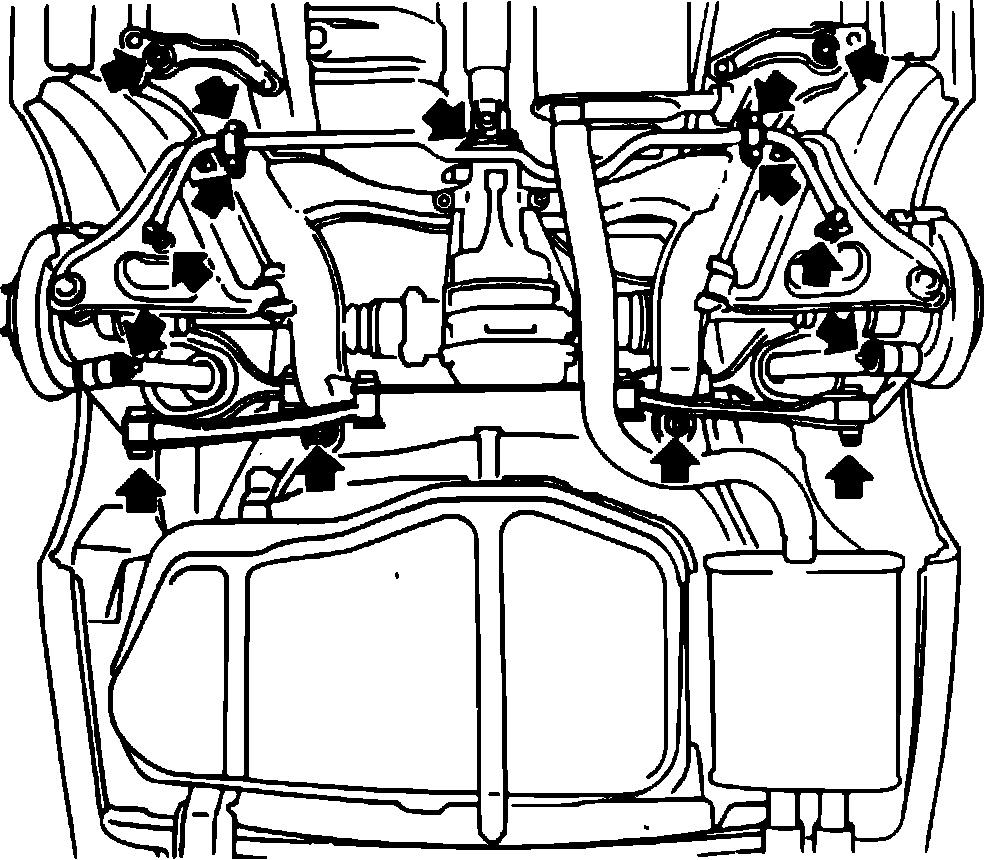

Fig. 4 Rear Axle & Suspension Assembly Replacement.:

Refer to Fig. 4 for replacement, noting the following:

1. Disconnect brake hydraulic line and parking brake cable.
2. Remove rear exhaust pipe.
3. Remove upper strut attaching bolts.
4. Disconnect propeller shaft.
