Removal and Installation

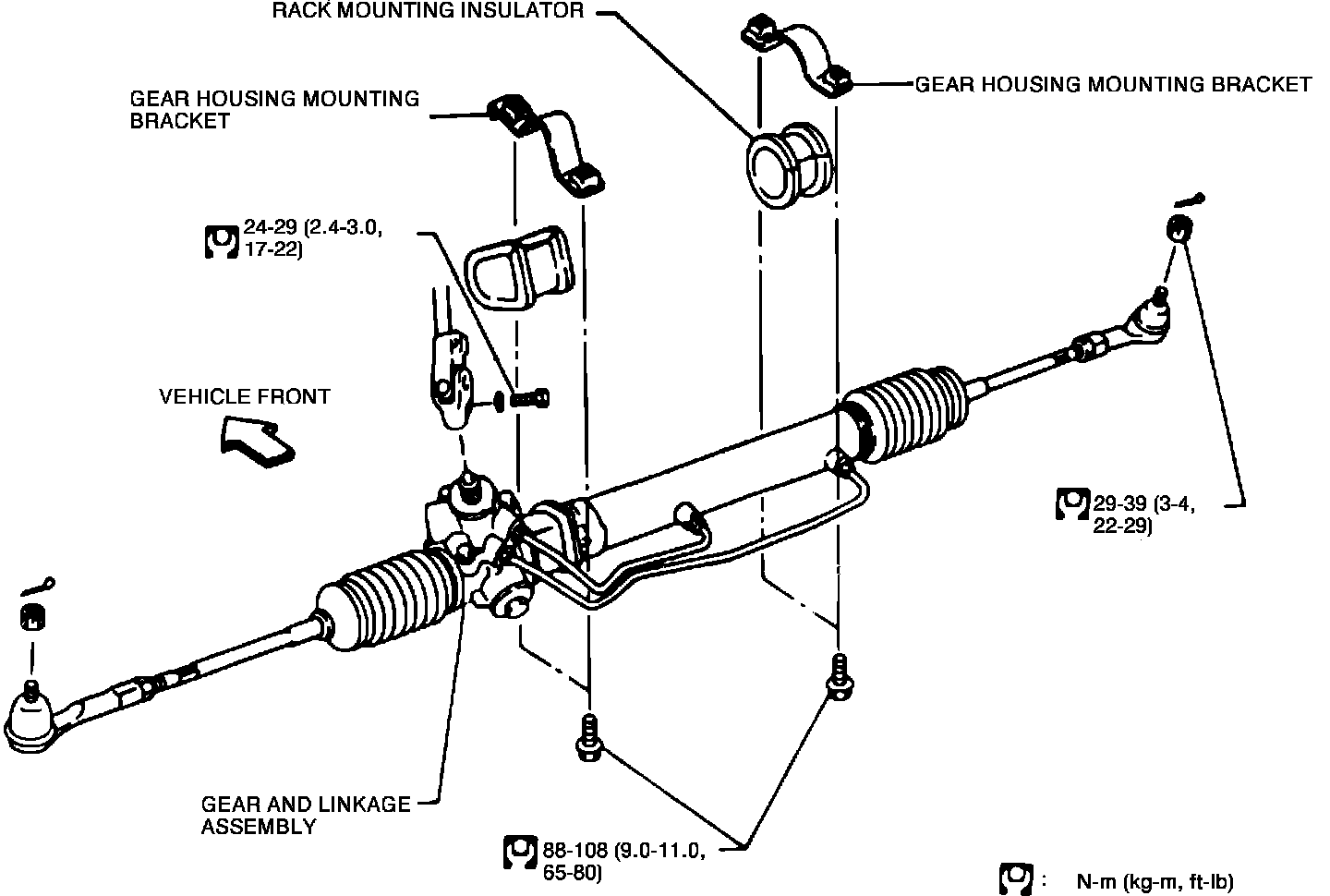

Fig. 6 Steering Gear Replacement.:

Refer to Fig. 6 for power steering gear replacement procedure, noting the following.
1. When removing power steering hoses plug ports and lines.
2. Set wheels straight-head before removing lower joint. After removing lower joint, put matching mark on pinion shaft and pinion housing.
