Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Service and Repair

Steering Column: Service and Repair

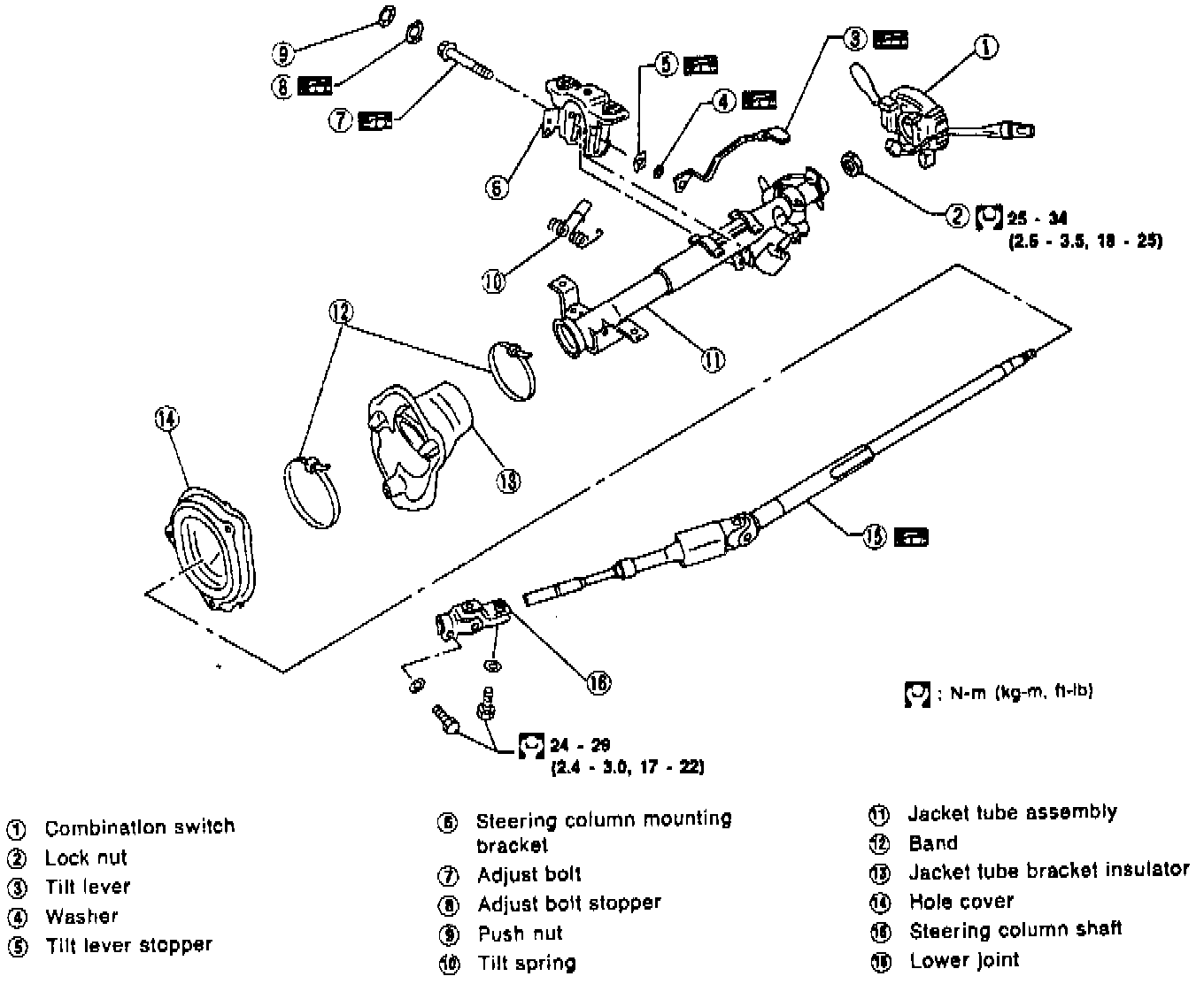

Fig. 12 Exploded View Of Steering Column:
