Starter Motor: Testing and Inspection

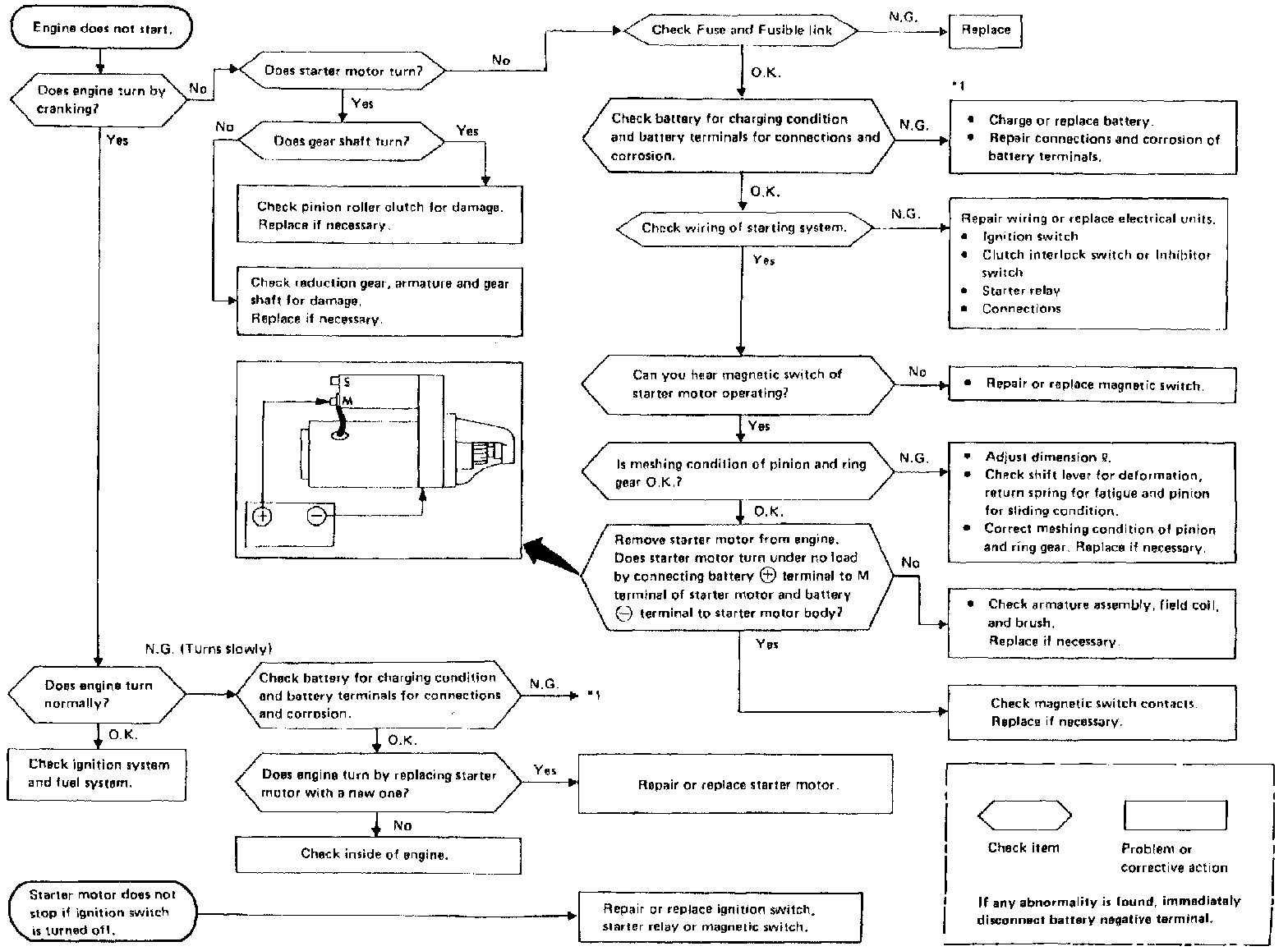

Fig. 4 Starter Test:




Refer to Fig. 4 for starter in-vehicle testing.
