Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Starting and Charging >> Relays and Modules - Starting and Charging >> Neutral Start Relay (Inhibitor Relay) >> Locations >> Interlock Relay

Interlock Relay

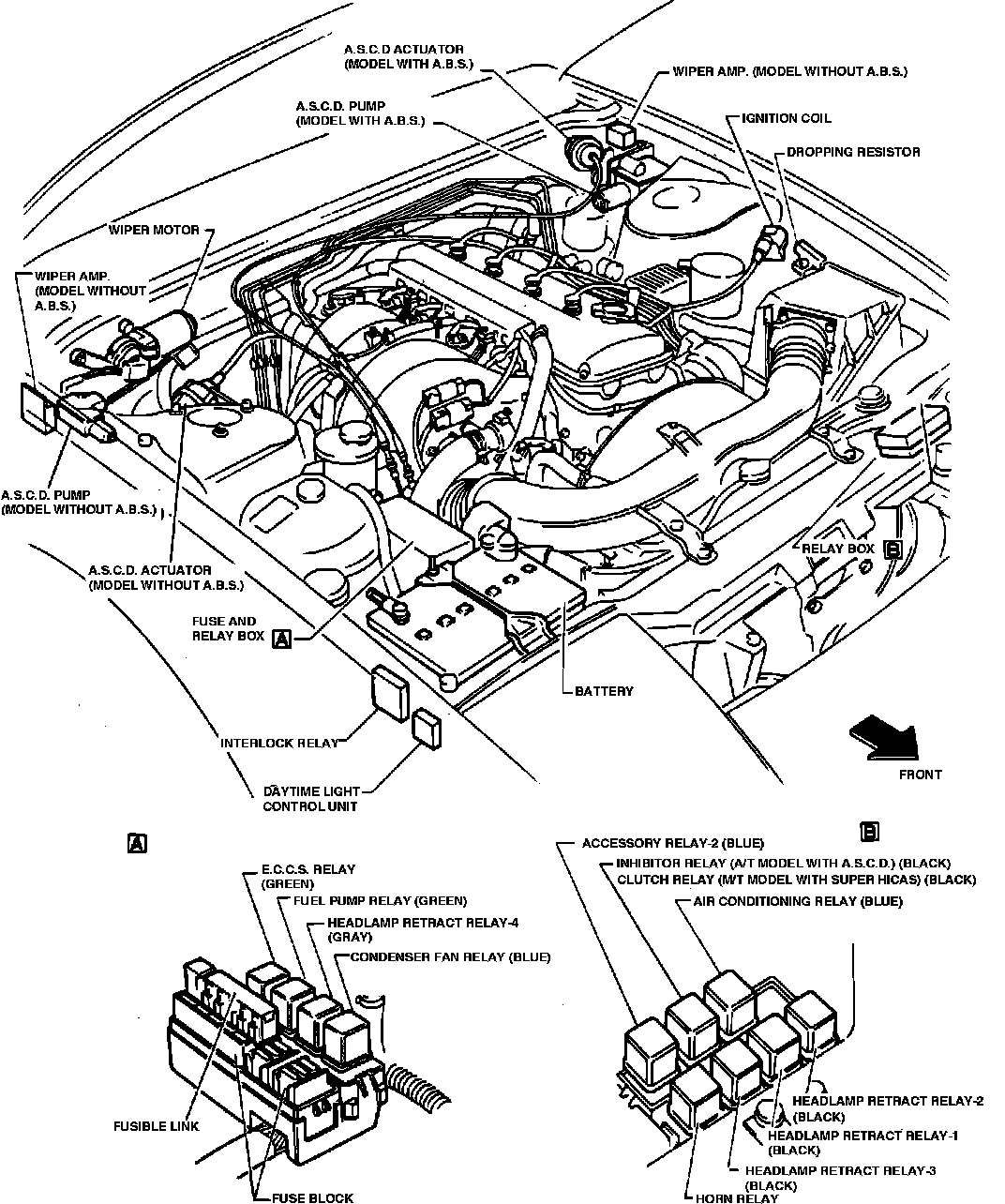

Engine Compartment Components:




Front RH Side Of Engine Compartment
