Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications >> Inspection and Adjustment >> Gear Clearance and End Play >> Gear End Play

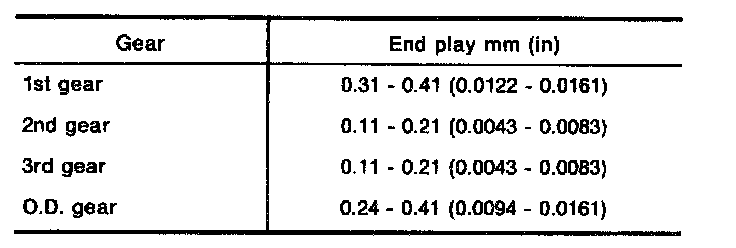

Gear End Play

Gear End Play:
