Clearance Between Baulk Ring and Gear (1, 3, Drive, OD and R)
Clearance Between Baulk Ring and Gear (1, 3, Drive, OD and R)

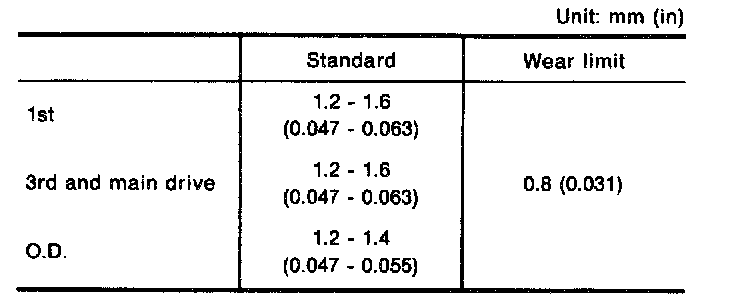

Clearance Between Baulk Ring And Gear - 1st, 3rd, Main Drive And O.D. Baulk Ring:
