Nissan-Datsun
>>
1994
>>
240SX Convertible L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Fluid Type Specifications
>>
Manual Transmission/Transaxle
>>
System Specifications
System Specifications
Fluid type
API GL-4

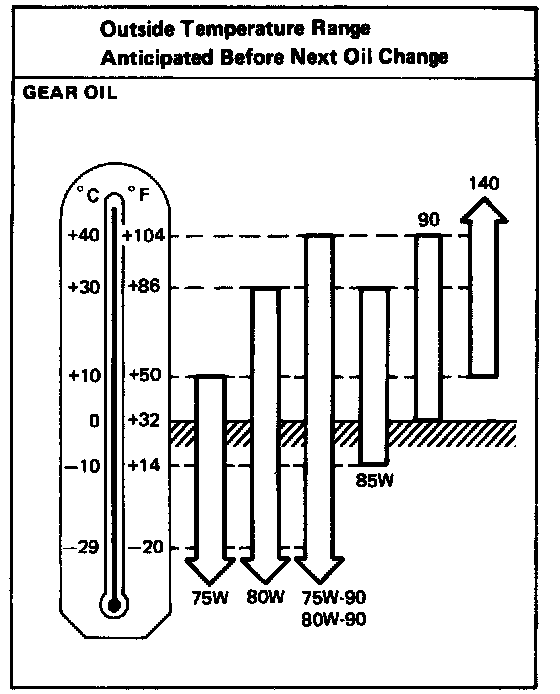

Viscosity Chart:
Note:
75W-90 for the transmission and 80W-90 for the differential are preferable if the ambient temperature is below 40°C (104°F).
