Fuel Gauge Sender

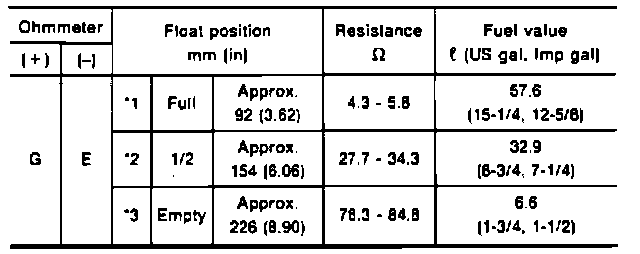

Fig. 39 Fuel Tank Sender Unit Resistance Specifications:





Fuel Tank Sender Resistance Specs
