Ignition Switch: Service and Repair

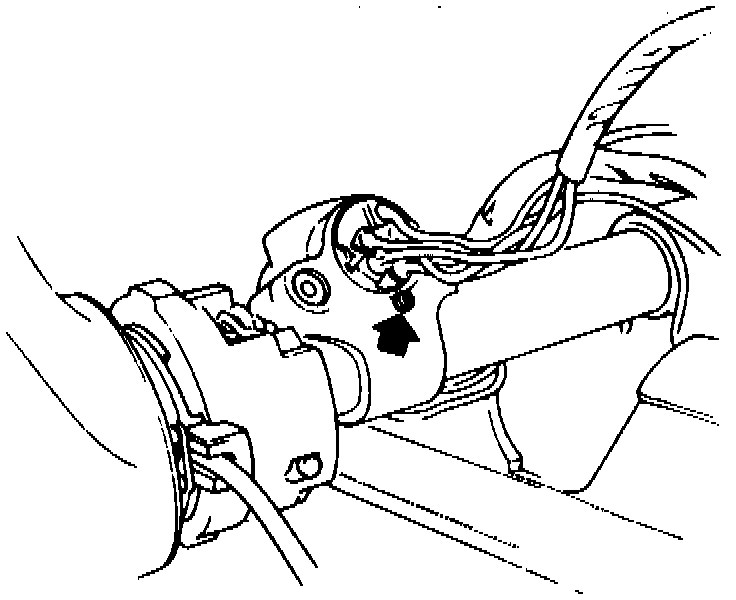

Fig. 2 Ignition Switch Replacement:

1. Remove four upper and lower shell cover retaining screws, then shell covers.
2. Disconnect electrical connectors from switch.
3. Remove switch retaining screw from steering lock, Fig. 2.
4. Remove switch.
5. Reverse procedure to install.
