Fuel Gauge Sender: Testing and Inspection

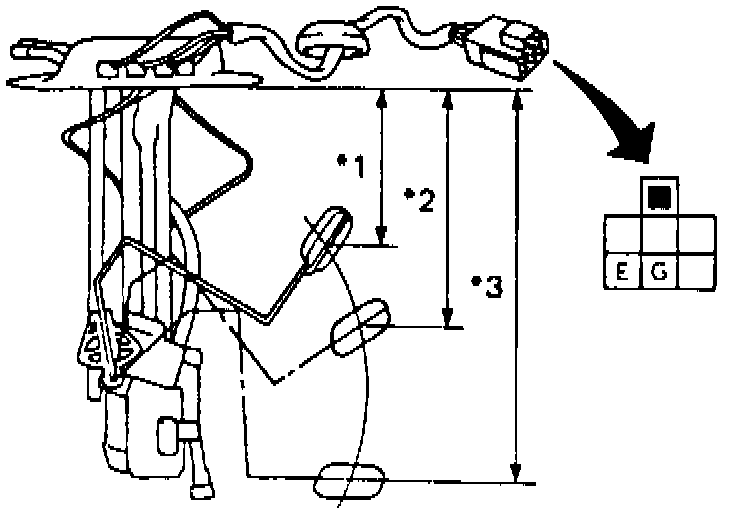

Fig. 28 Fuel Tank Gauge Unit Inspection:

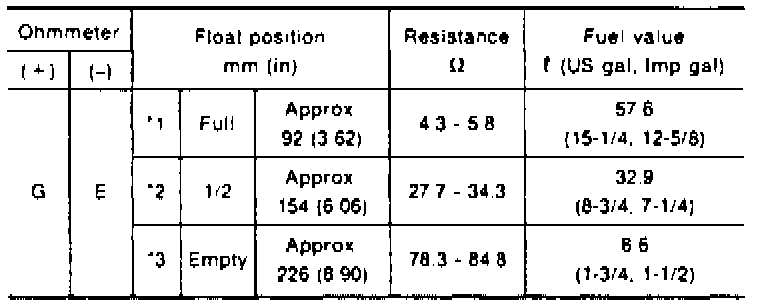

Fig. 41 Fuel Tank Gauge Unit Resistance Specifications:

Remove fuel tank gauge unit from the fuel tank, then connect an ohmmeter between terminals of the gauge unit connector as shown in Fig. 28. Compare results with specifications in Fig. 41. Repair or replace as necessary.
