Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Strategies >> Road Test >> Shifting Operation >> Shift Schedule O/D On

Shift Schedule O/D On

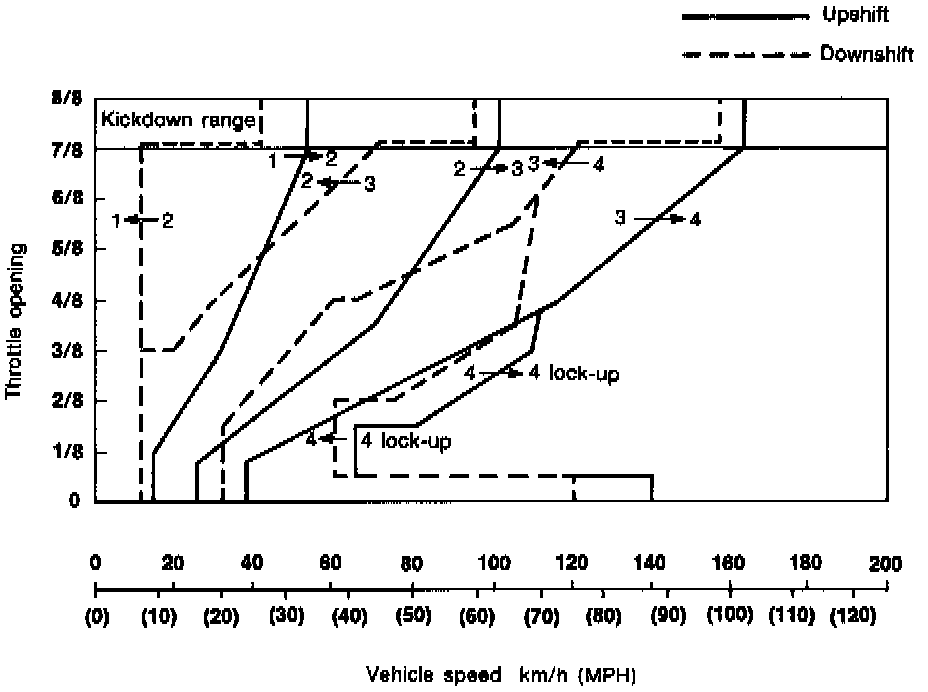

Overdrive Shift Schedule:
