Testing W/O CONSULT Instructions
Testing W/O CONSULT Instructions
^ Check all items listed in Parts 1 through 3.
Cruise Test Part 1

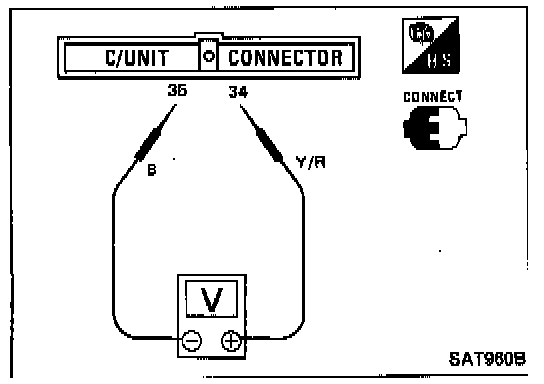

^ Throttle position can be controlled by voltage across terminals 34 and 35 of A/T control unit.
