Inhibitor, Overdrive and Throttle Position Switch

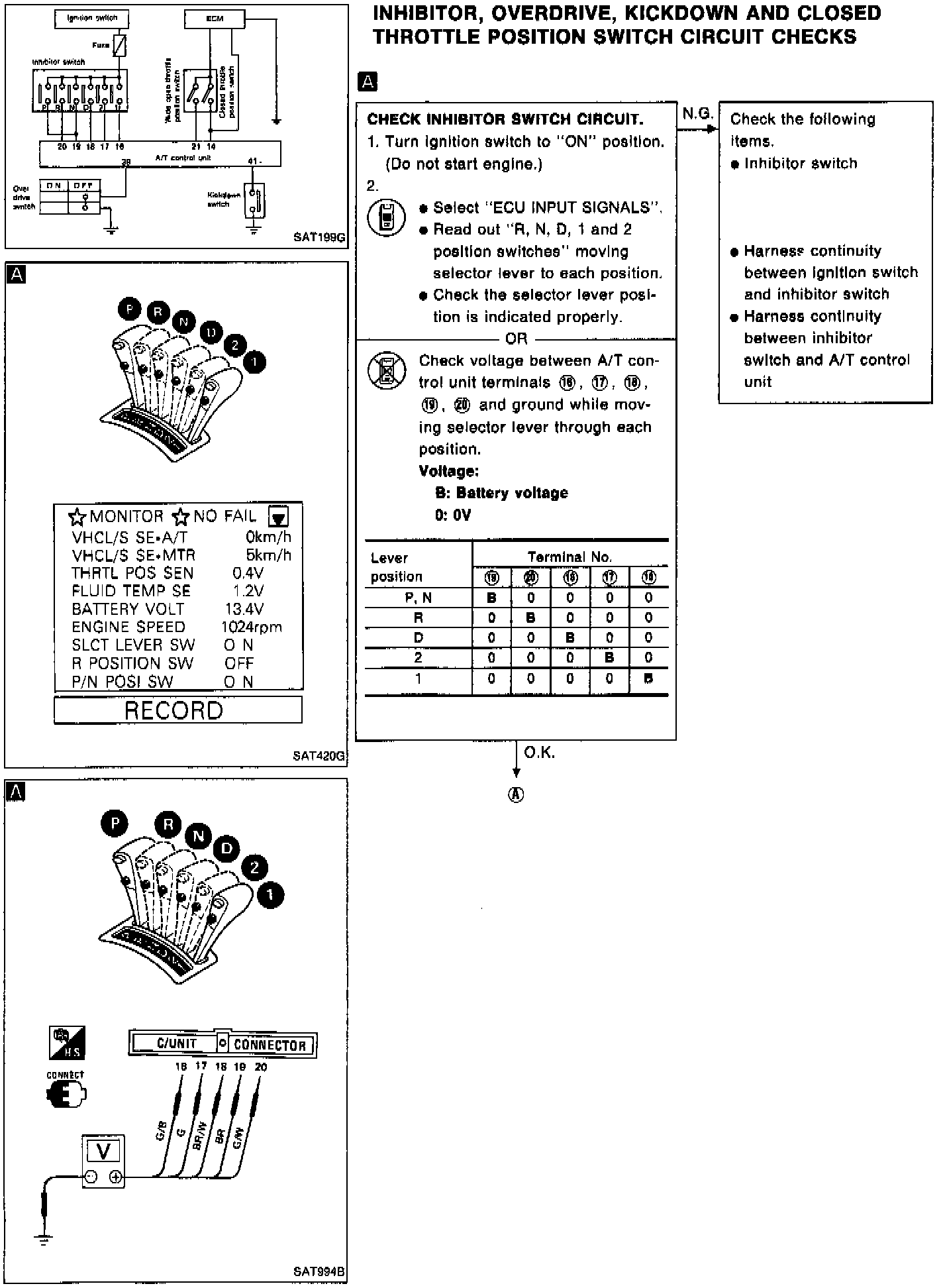

Inhibitor, O/D, Kickdown and Closed Throttle Switch Circuit (1 Of 4):



Inhibitor, O/D, Kickdown and Closed Throttle Switch Circuit (2 Of 4):

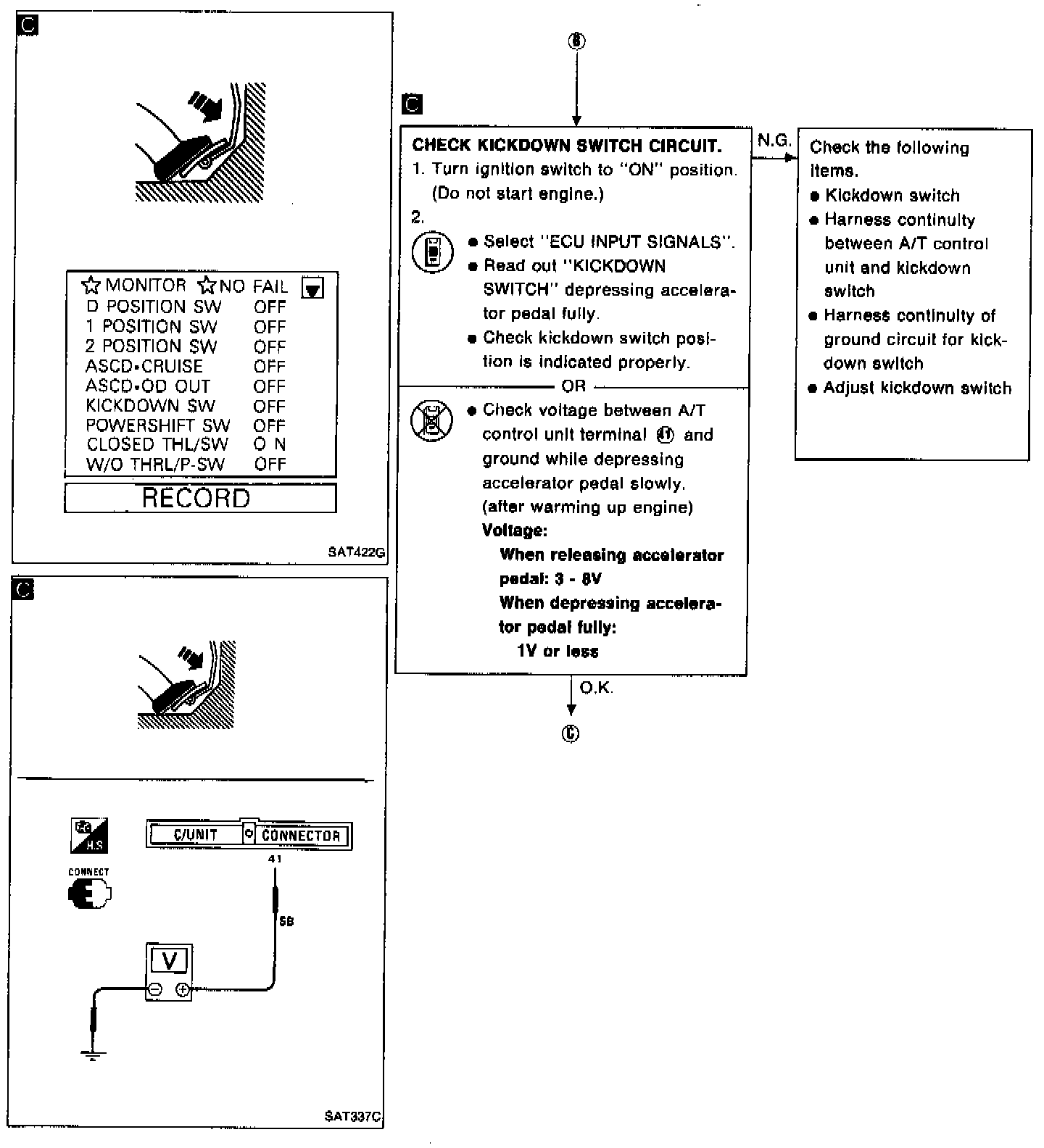

Inhibitor, O/D, Kickdown and Closed Throttle Switch Circuit (3 Of 4):

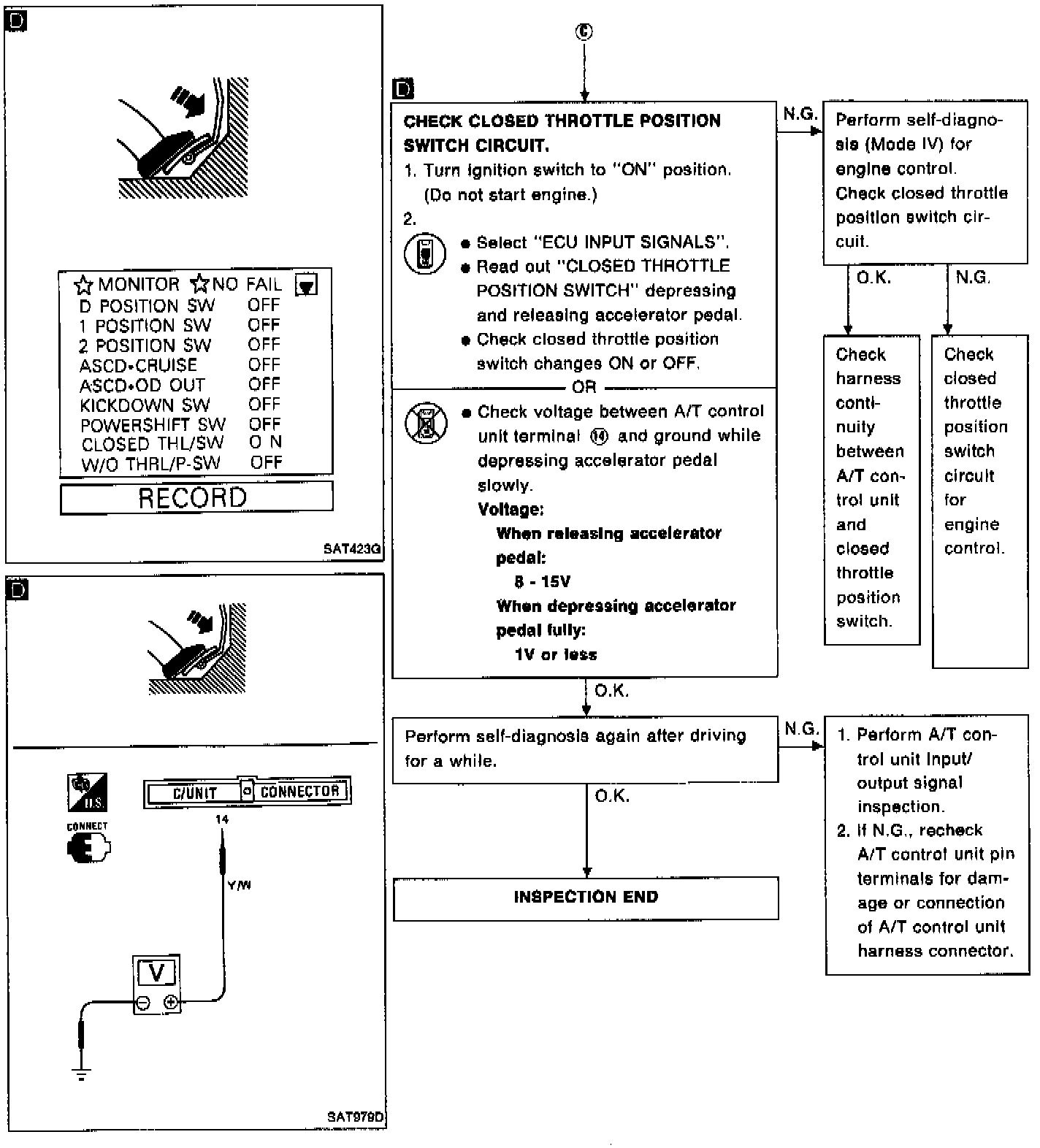

Inhibitor, O/D, Kickdown and Closed Throttle Switch Circuit (4 Of 4):
