Home
>>
Nissan-Datsun
>>
1994
>>
240SX Convertible L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Diagnostic Procedures
>>

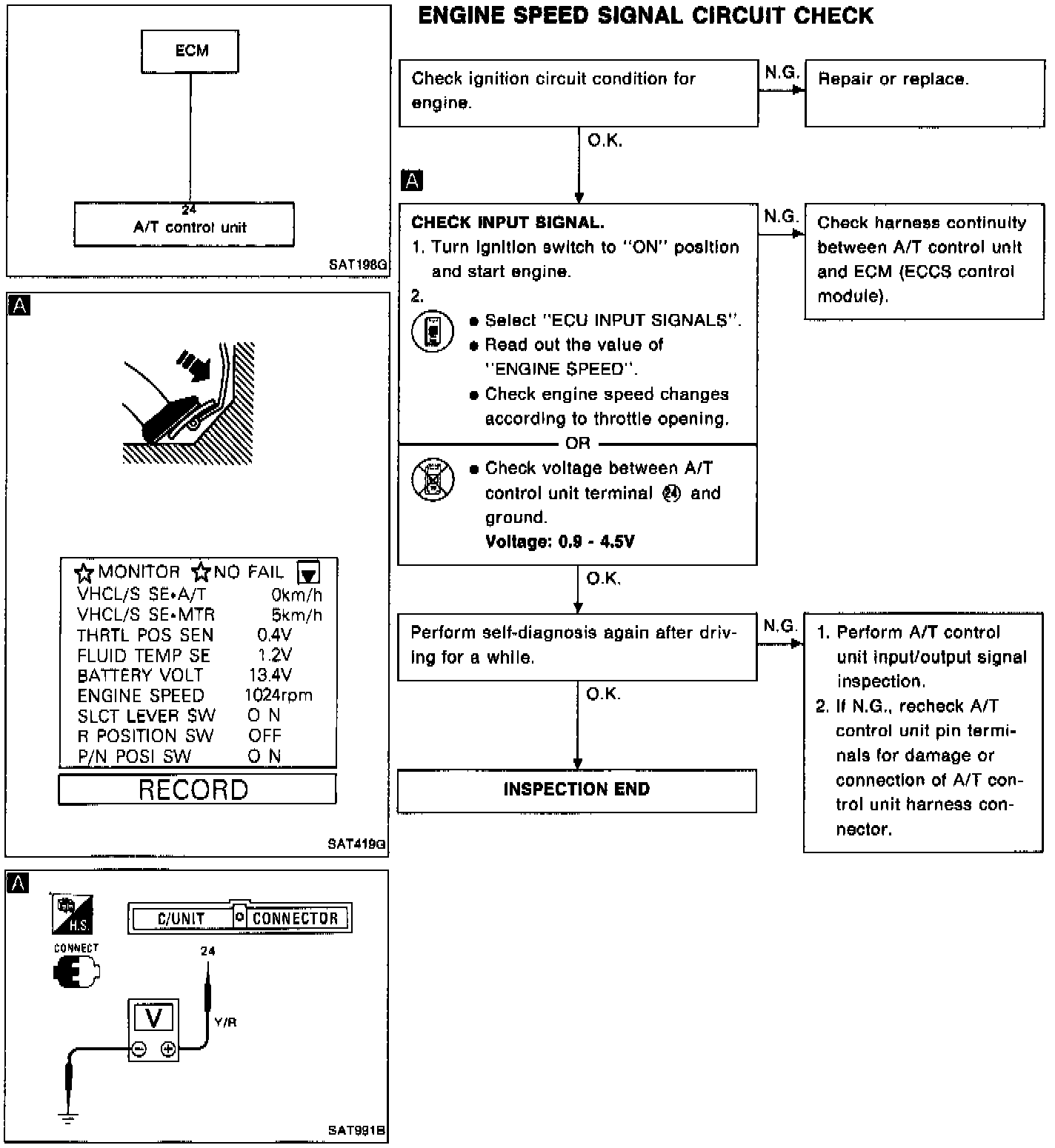

Engine Speed Signal Circuit Check
Engine Speed Signal Circuit Check
Engine Speed Signal Circuit Check:
