Flow of Diagnosis

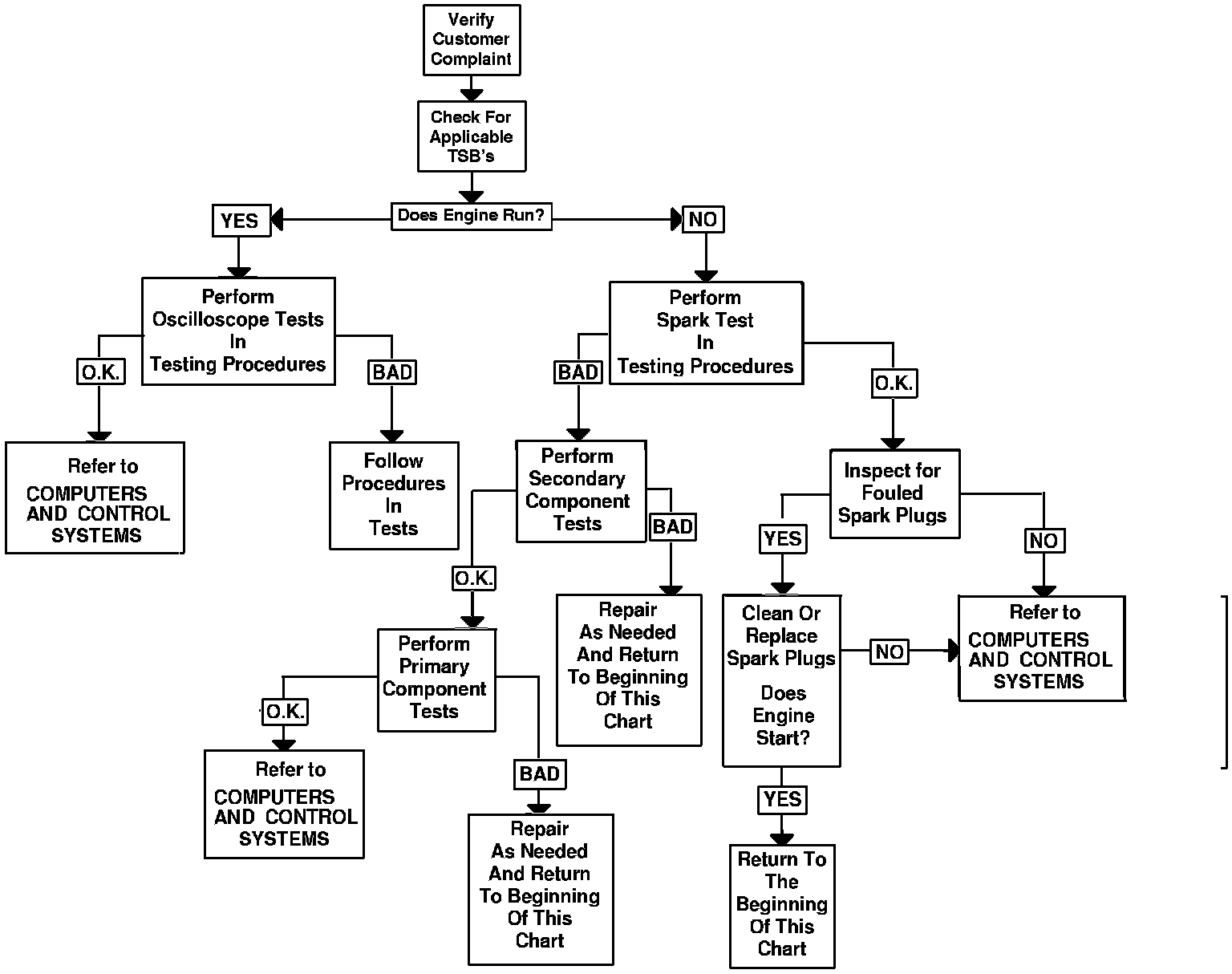

Flow Of Diagnosis:





1. Verify customer complaint.
2. Check for applicable TSB's.
3. Follow the Flow Of Diagnosis from top to bottom.
4. If no faults are found in the ignition system, refer to Computers and Control Systems.
