Ignition Coil

Ignition Coil Testing:

1. Disconnect ignition coil terminal.

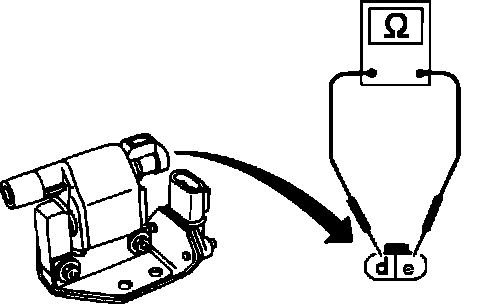

2. Using an ohm meter measure resistance across the terminals as shown.
If not approximately 0.7 ohm, replace ignition coil.
