Variable Induction Control Solenoid: Testing and Inspection

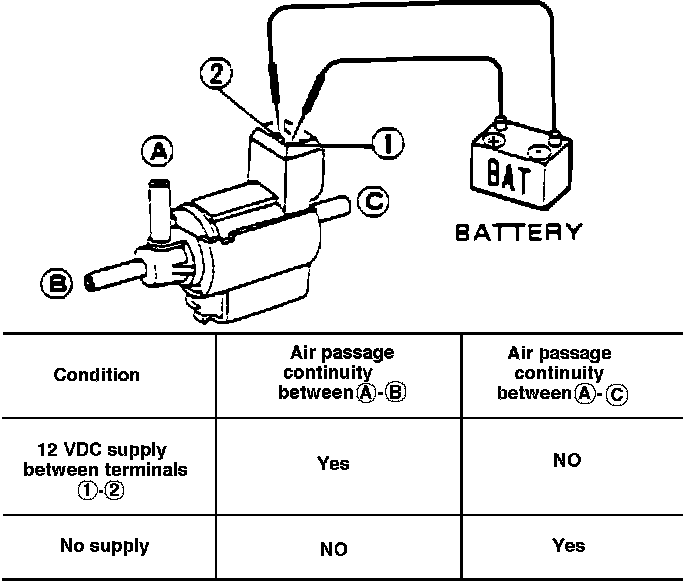

Fig. 153 Solenoid Valve Test:

Apply voltage to the solenoid terminals as shown above and check air passages for continuity.
CAUTION: Reversing polarity will damage the solenoid.
Replace solenoid if it fails above tests.
