Fuel Injector: Locations

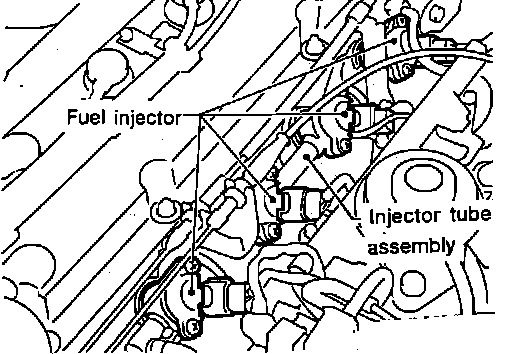

Fuel Injector Locations:
FUEL INJECTOR(S)
Located in the fuel rail on the back-side of the cylinder head.
