Evaporative Emission Control Canister: Testing and Inspection

Canister Test:

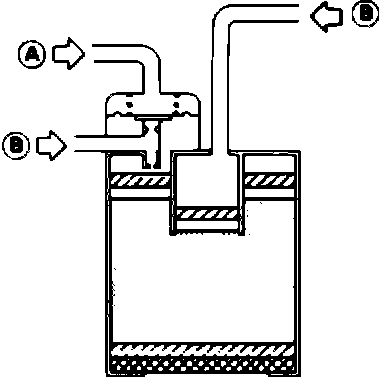

CHARCOAL CANISTER
1. Blow air into port "A".Air should NOT leak.
2. Blow air into both "B" ports. Air SHOULD leak.
Replace canister if it fails above tests.
