Start Signal

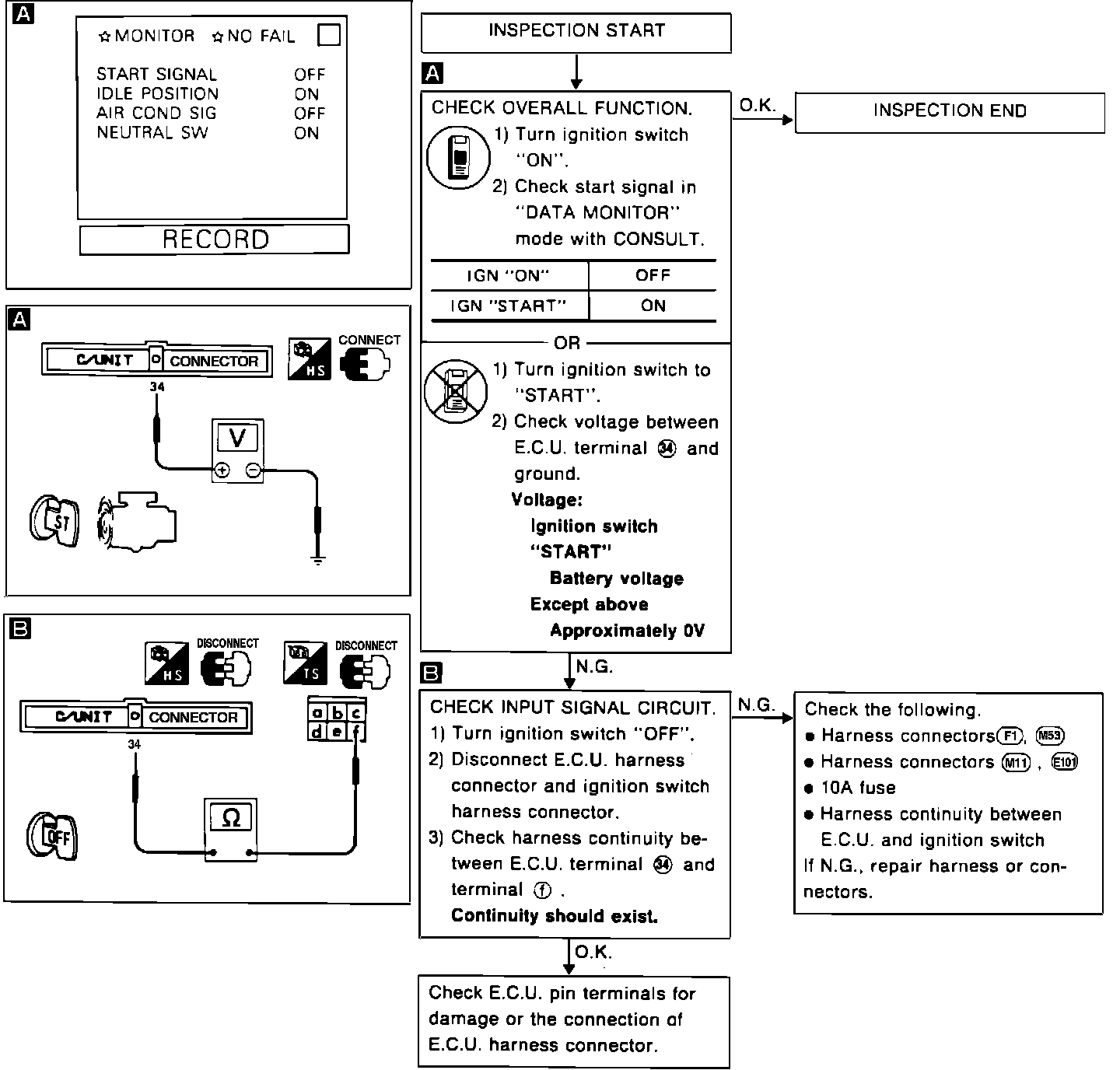

Start Signal Circuit Diagnostic Chart:





CIRCUIT TEST IMAGE

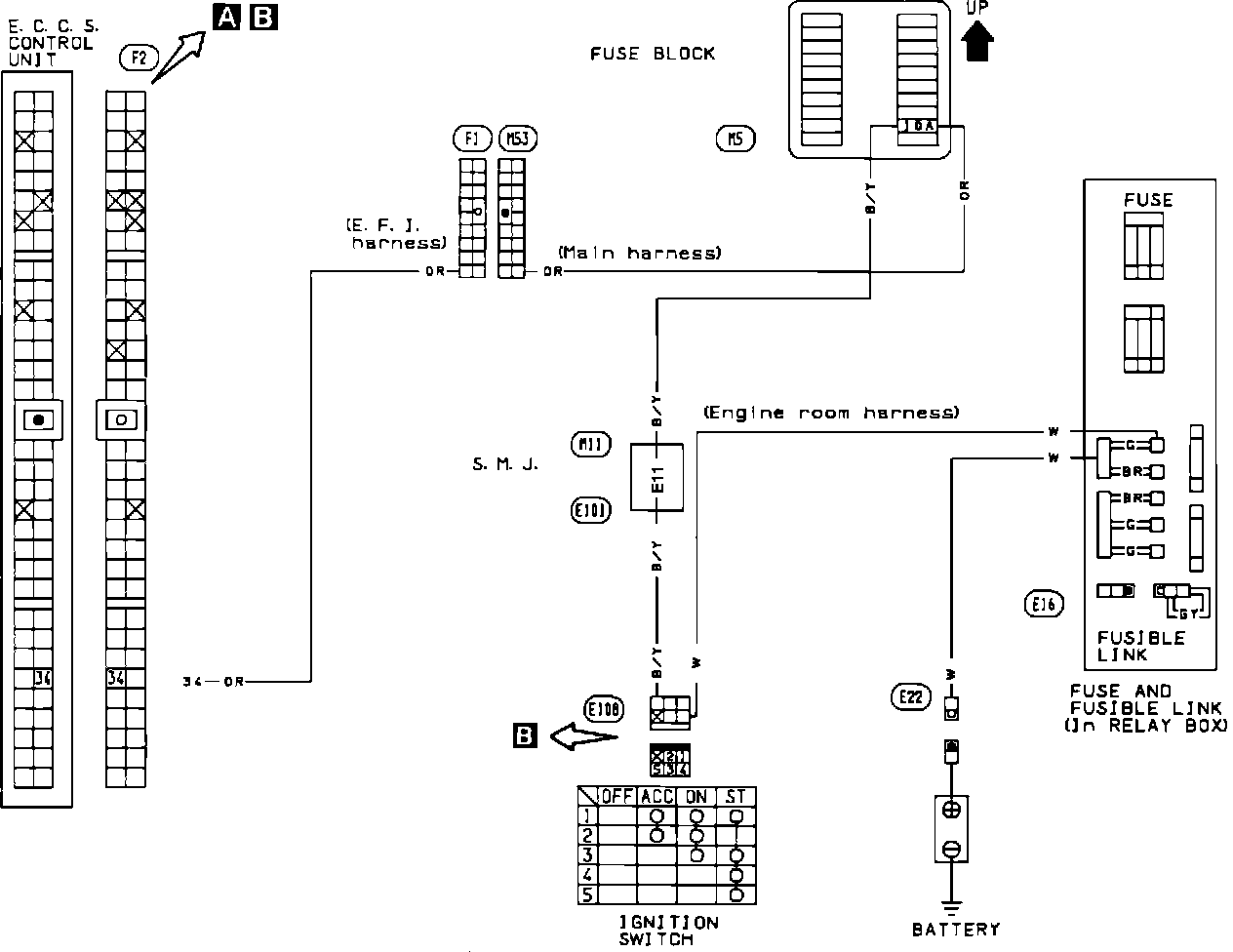

Cranking/Ign Signal:






CIRCUIT DIAGRAM IMAGE
