Power Steering Oil Pressure Switch

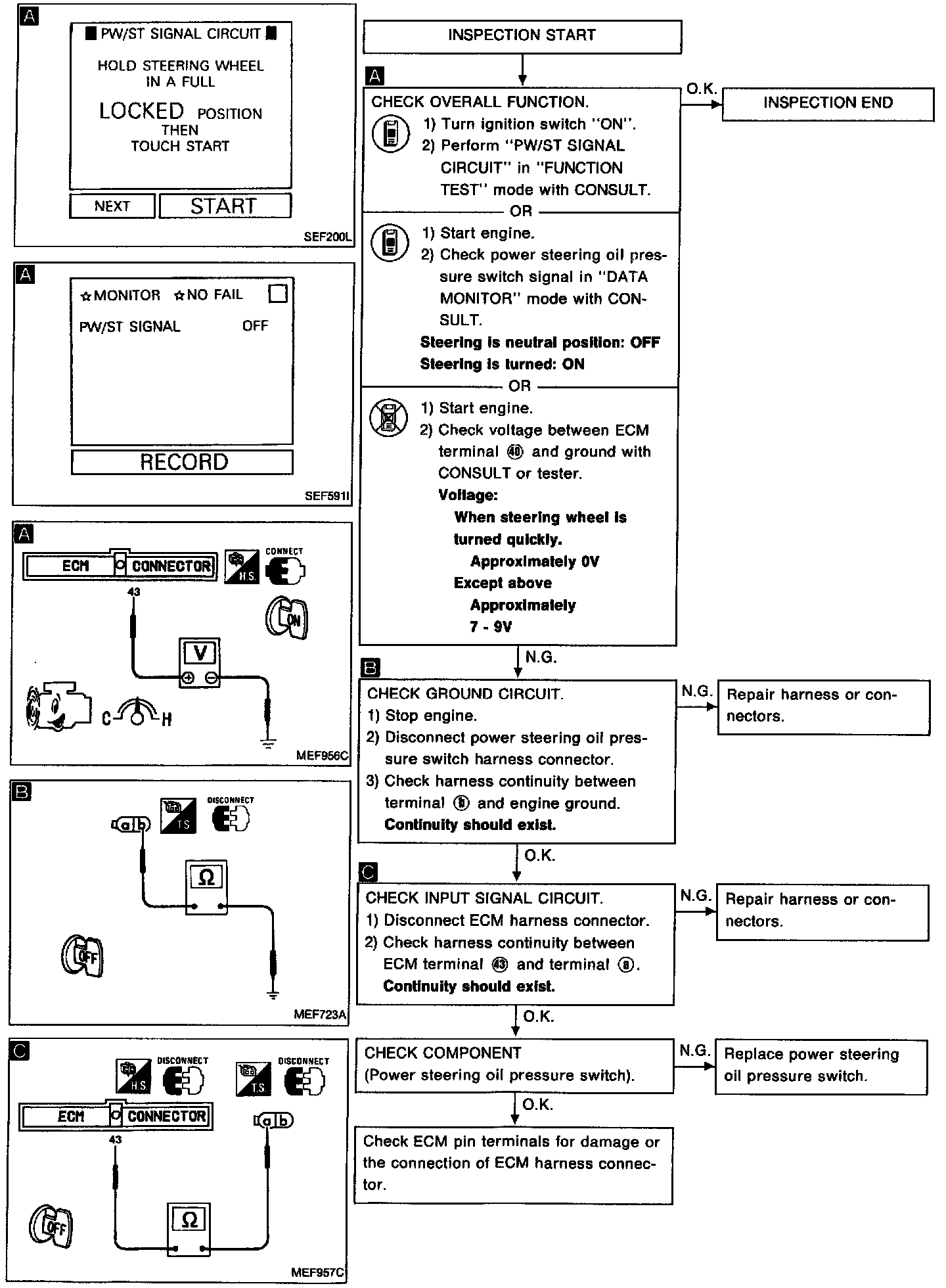

Power Steering Load Switch Circuit Diagnostic Chart:

CIRCUIT TEST IMAGE

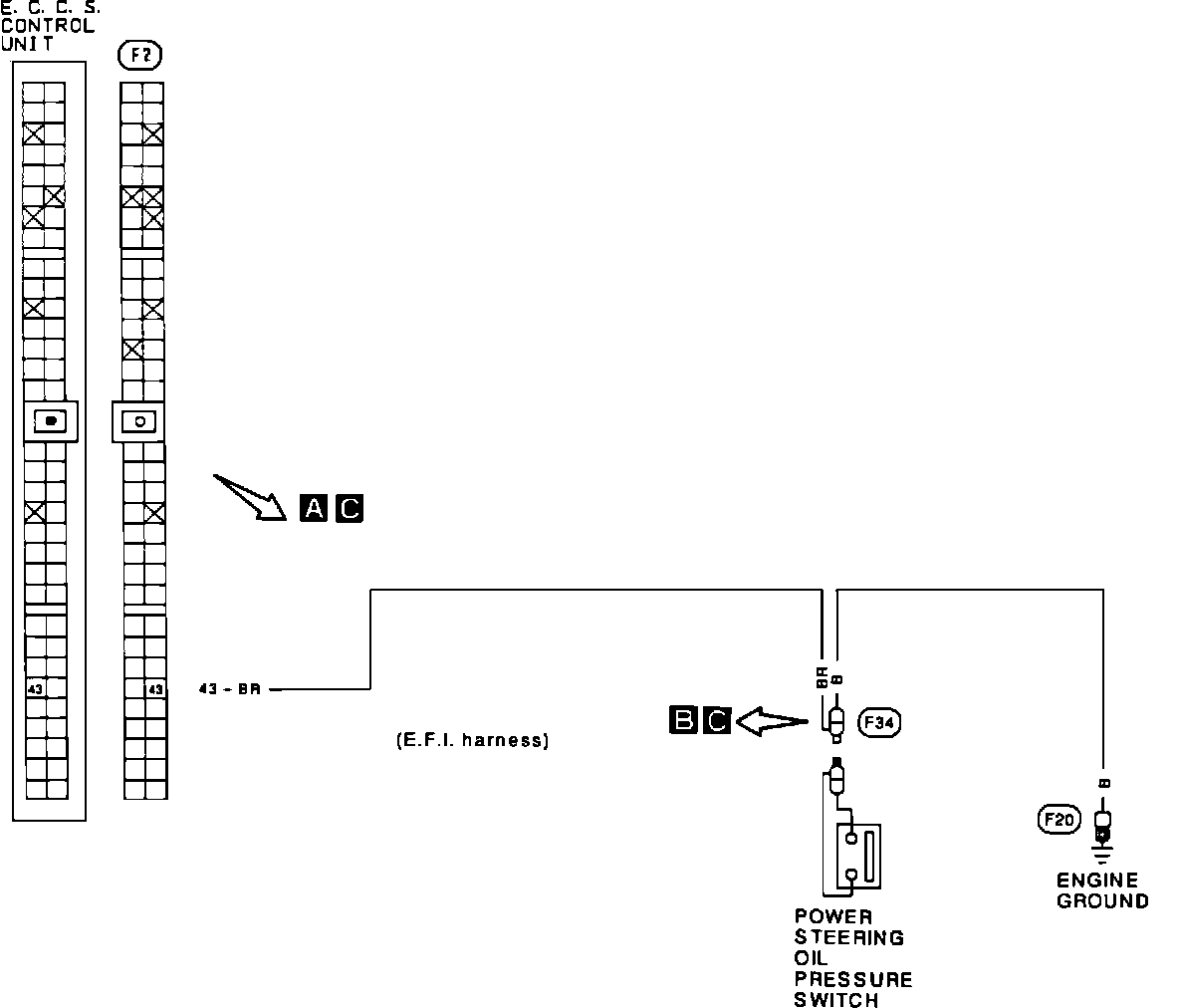

Power Steering Switch:

CIRCUIT DIAGRAM IMAGE

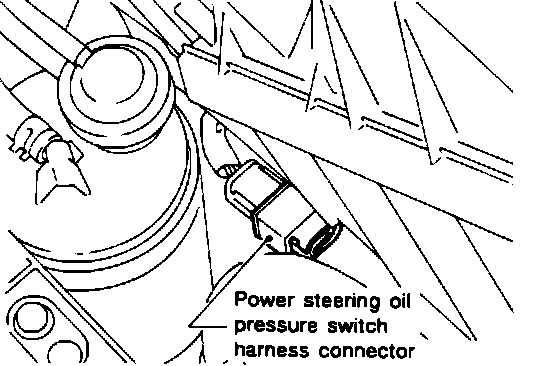

Connector Location:

CONNECTOR LOCATION IMAGE
