M/T Only

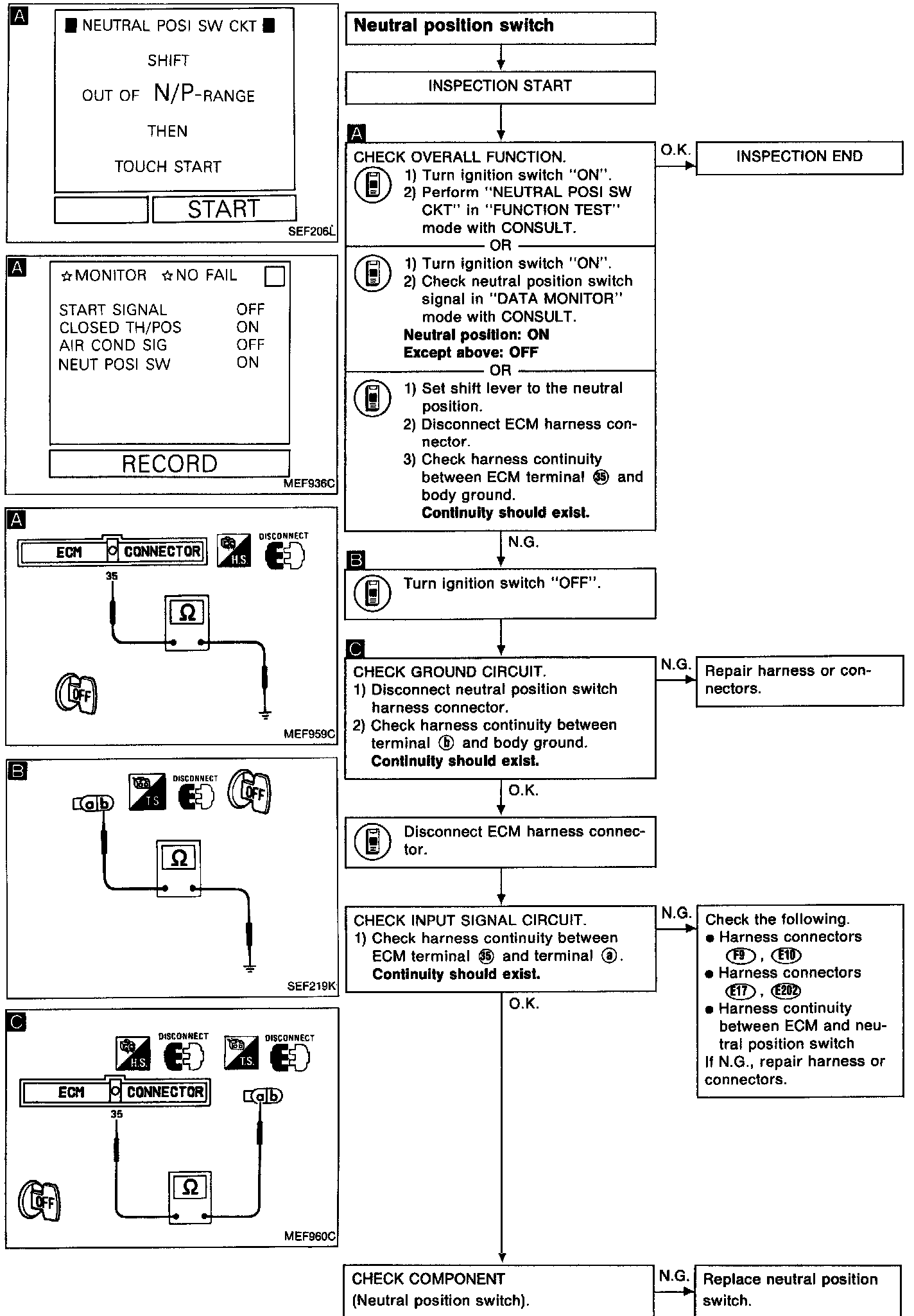

8+3Neutral/Inhibitor Switch Control Circuit Diagnostic Chart:





CIRCUIT TEST IMAGE

Circuit Diagram-A/T:





CIRCUIT DIAGRAM IMAGE

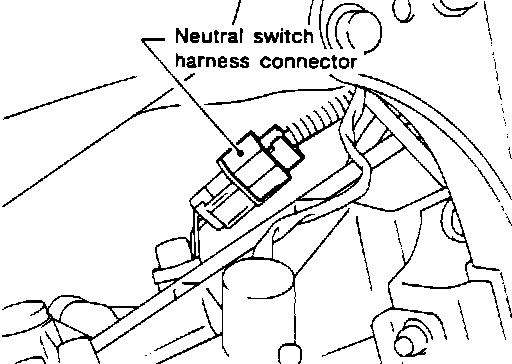

Connector Location:





CONNECTOR LOCATION IMAGE
