Neutral Switch Circuit
>>
A/T Only
A/T Only

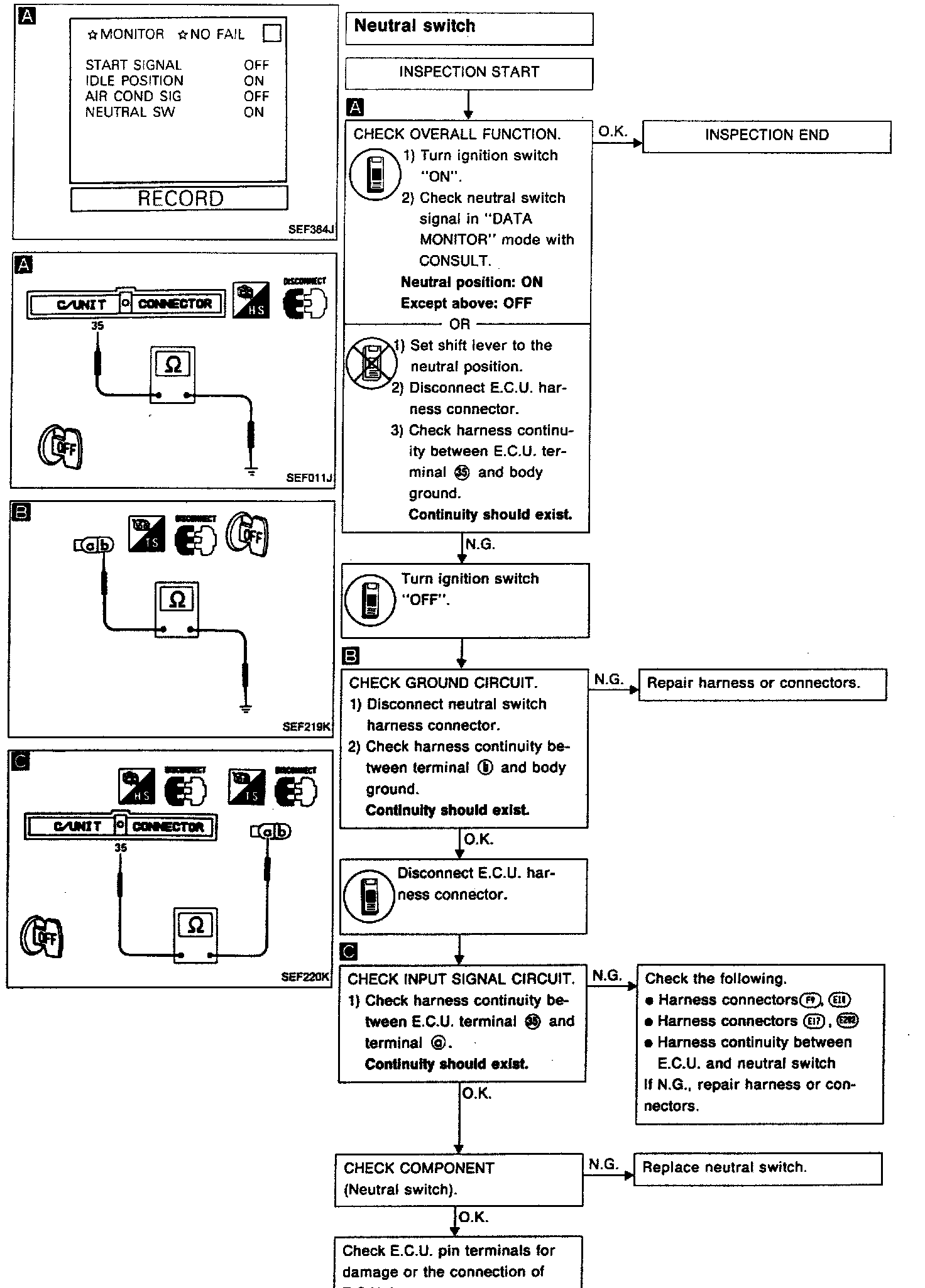

� '3A/T Control Unit Circuit Diagnosis:
CIRCUIT TEST IMAGE
Circuit Diagram-A/T:
CIRCUIT DIAGRAM IMAGE
