Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Idle Speed/Ignition Timing/Idle Mixture Ratio Inspection

Idle Speed/Ignition Timing/Idle Mixture Ratio Inspection

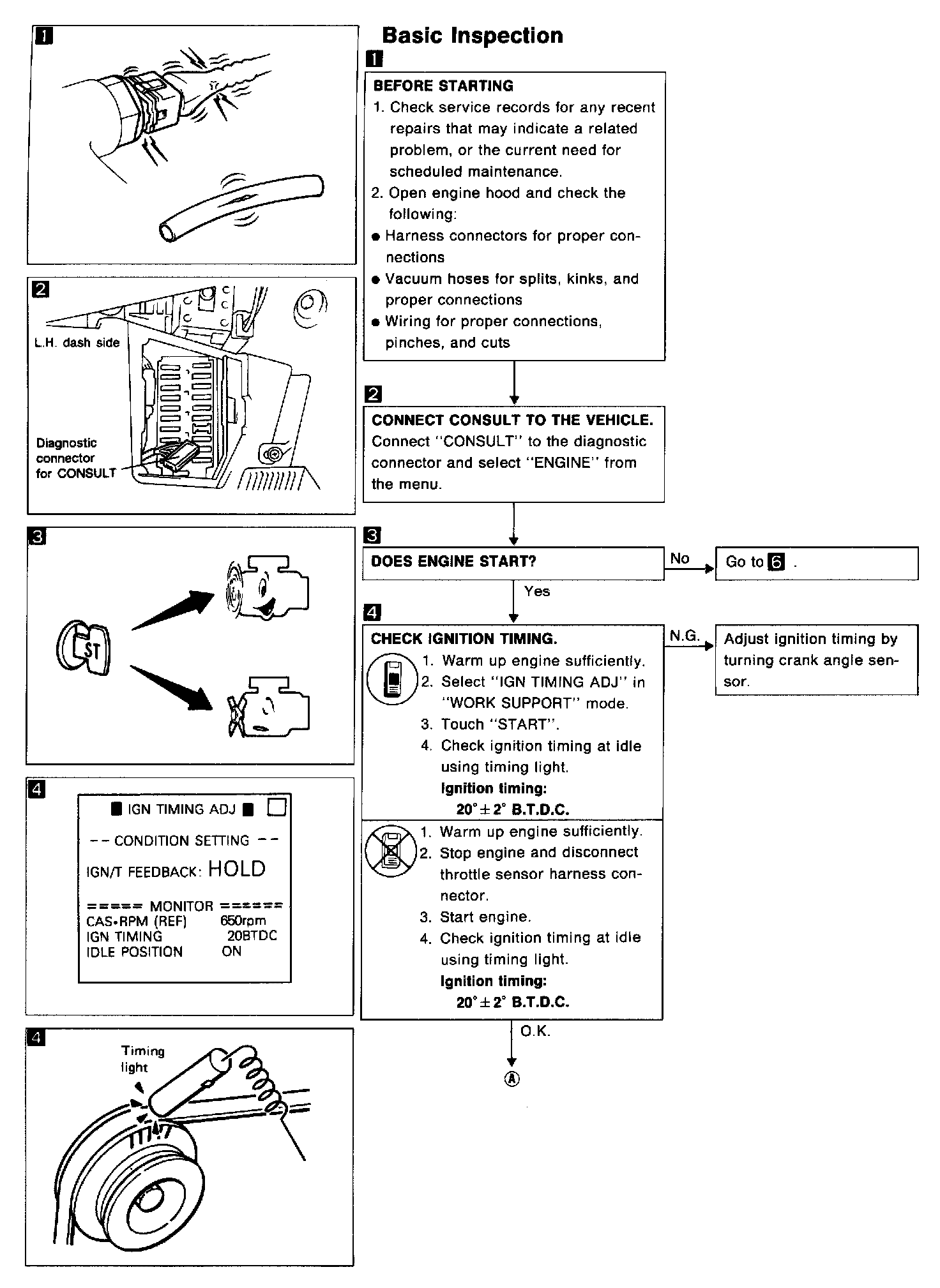

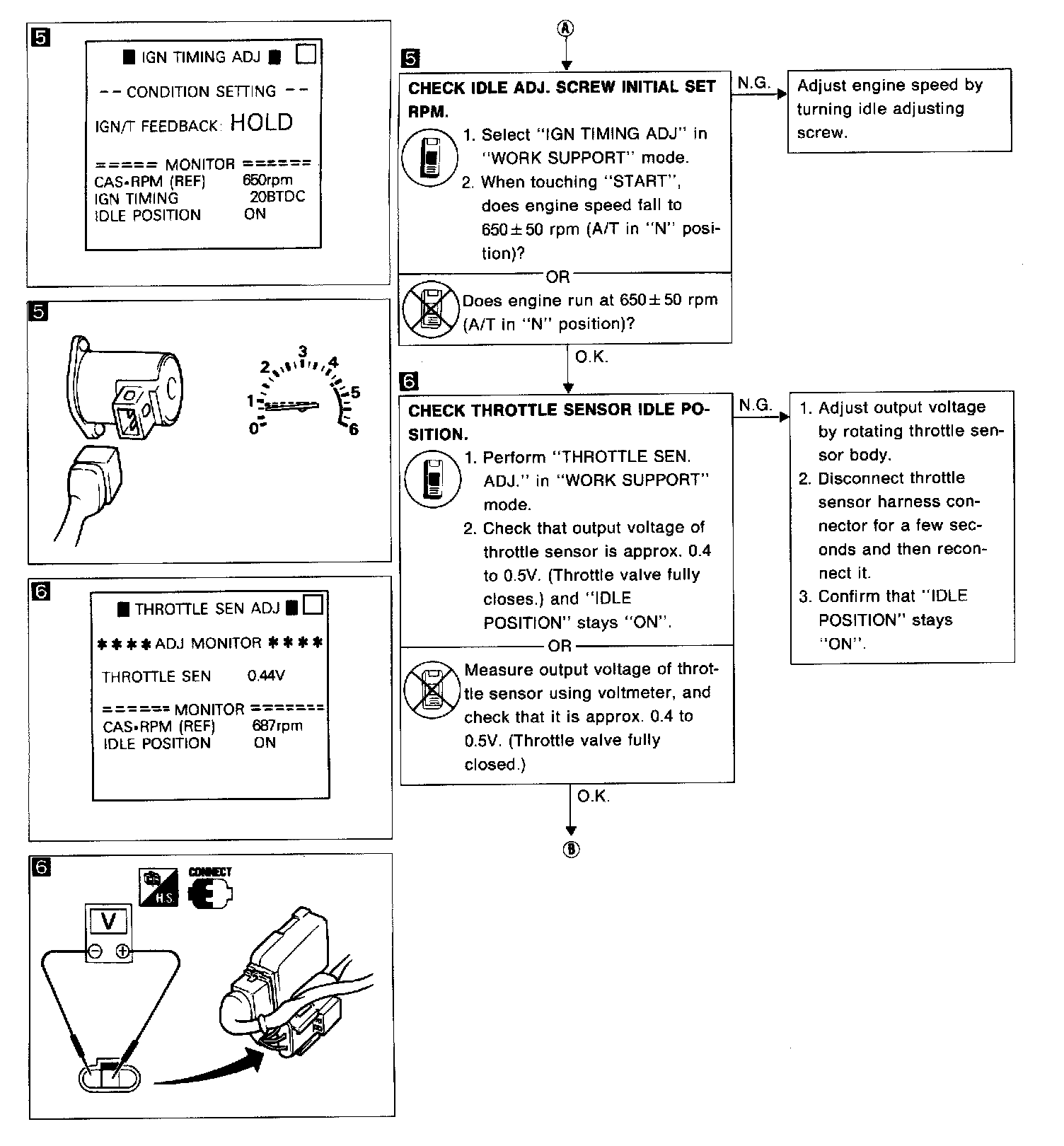

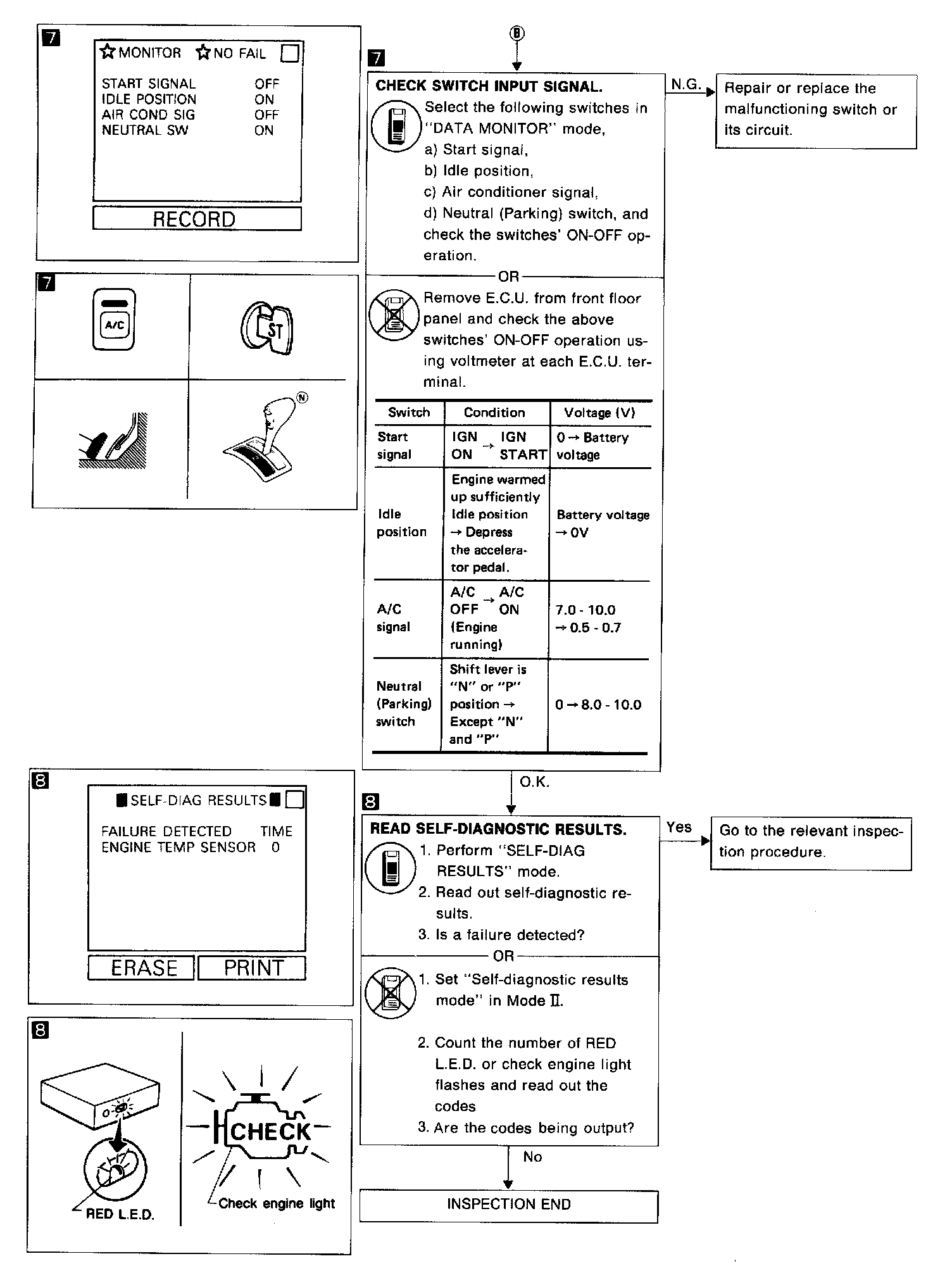

Basic Inspection (Igntion Timing & Idle Speed)
