Fuel Pump Control

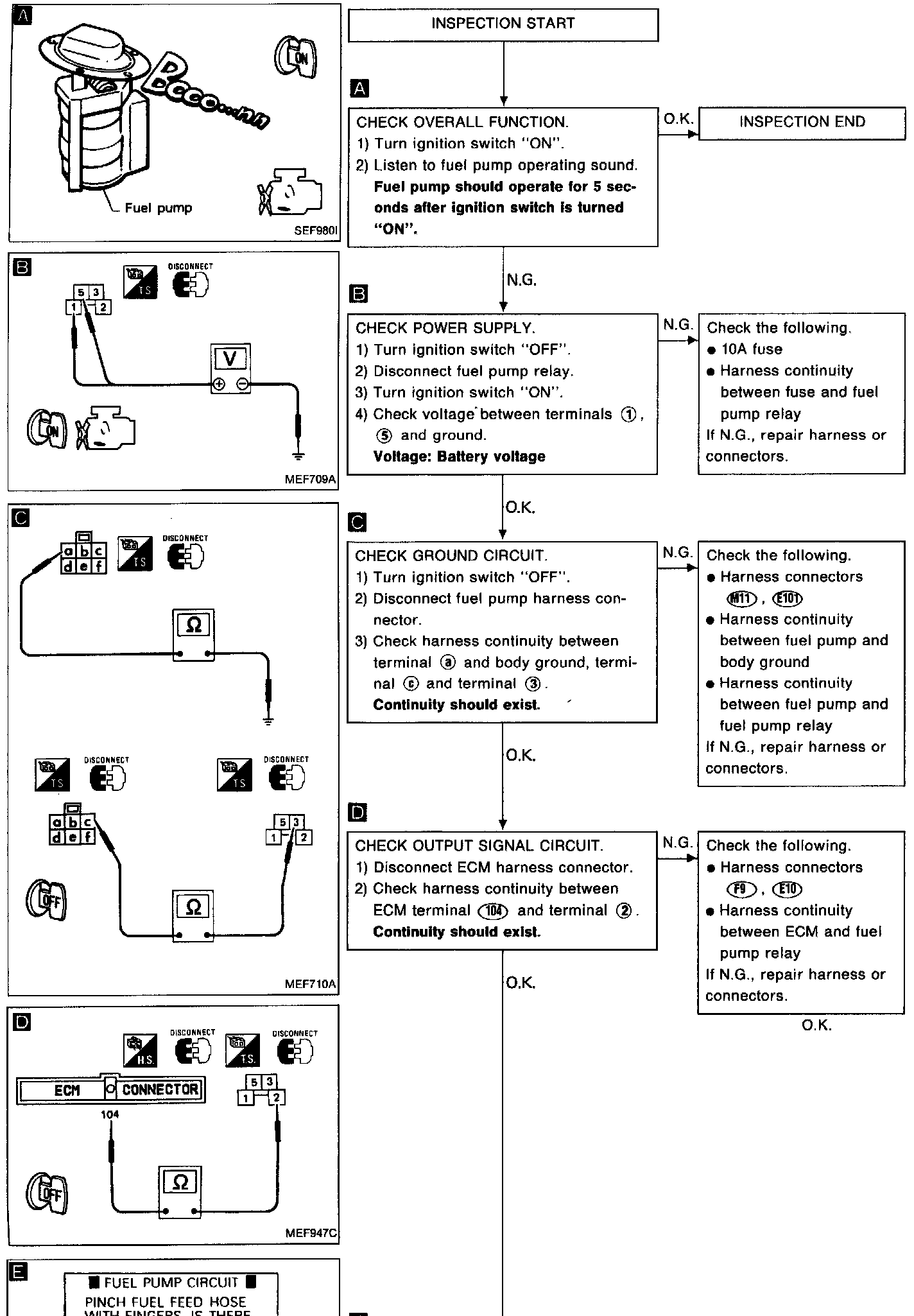

��2Fuel Pump Control Circuit Diagnostic Chart:





CIRCUIT TEST IMAGE

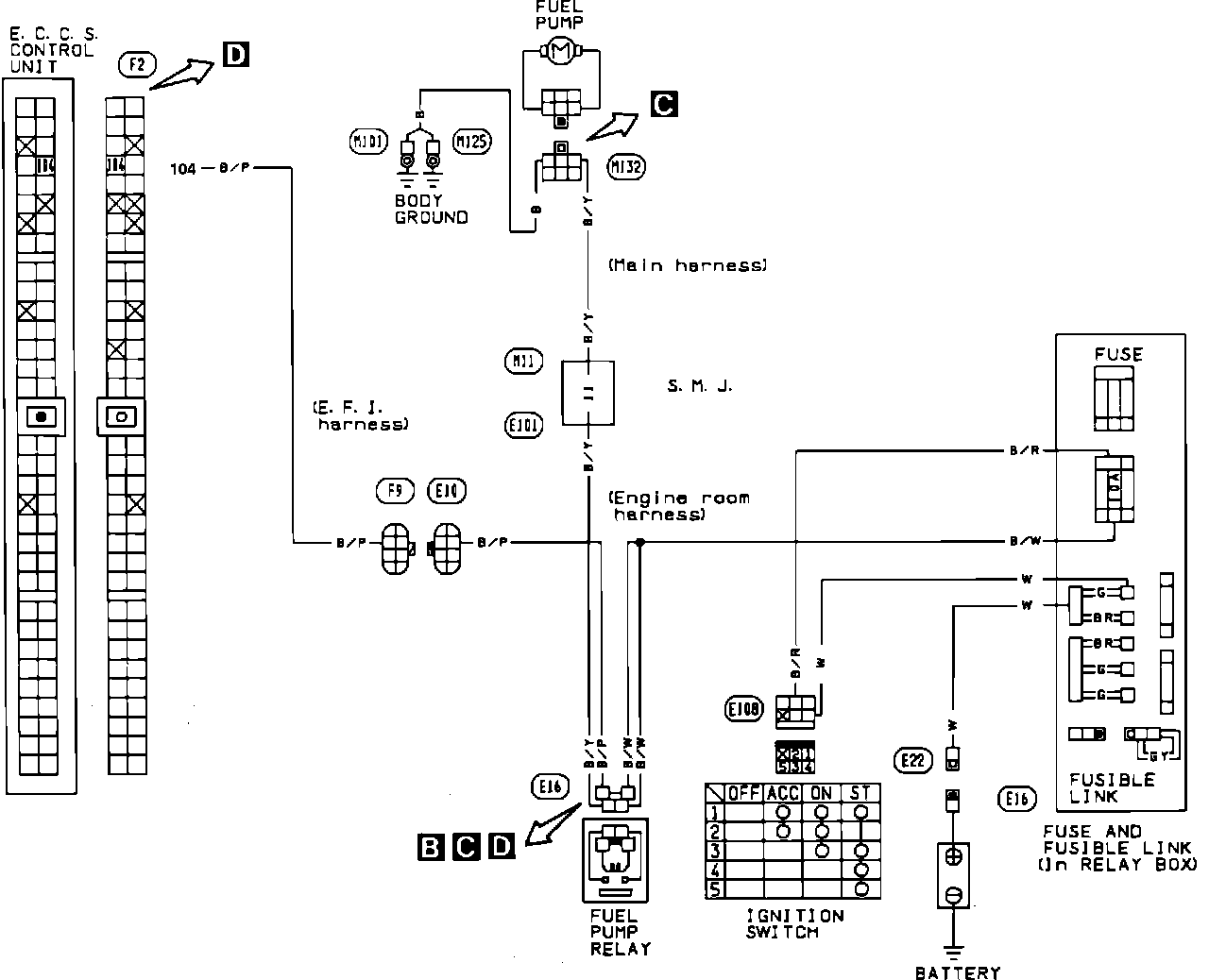

Circuit Diagram:





CIRCUIT DIAGRAM IMAGE

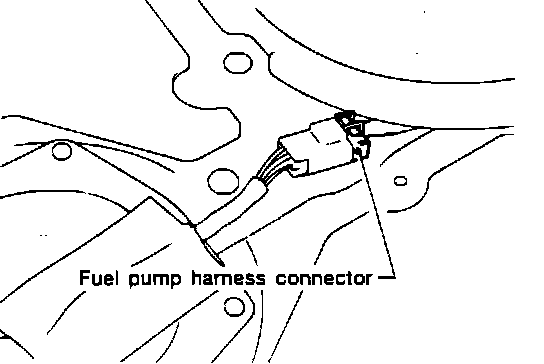

Connector Location:





FUEL PUMP CONNECTORS IMAGE

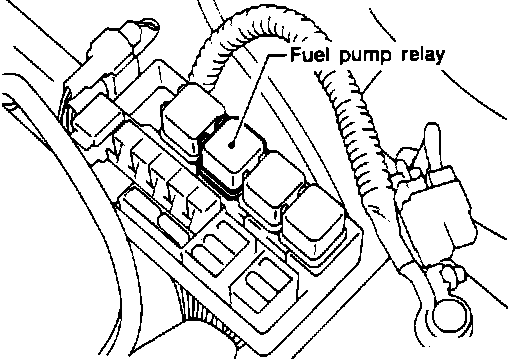

Component Location:





FUEL PUMP RELAY LOCATION IMAGE
