Fuel Injector
Fuel Injector
Fuel Pump Testing:

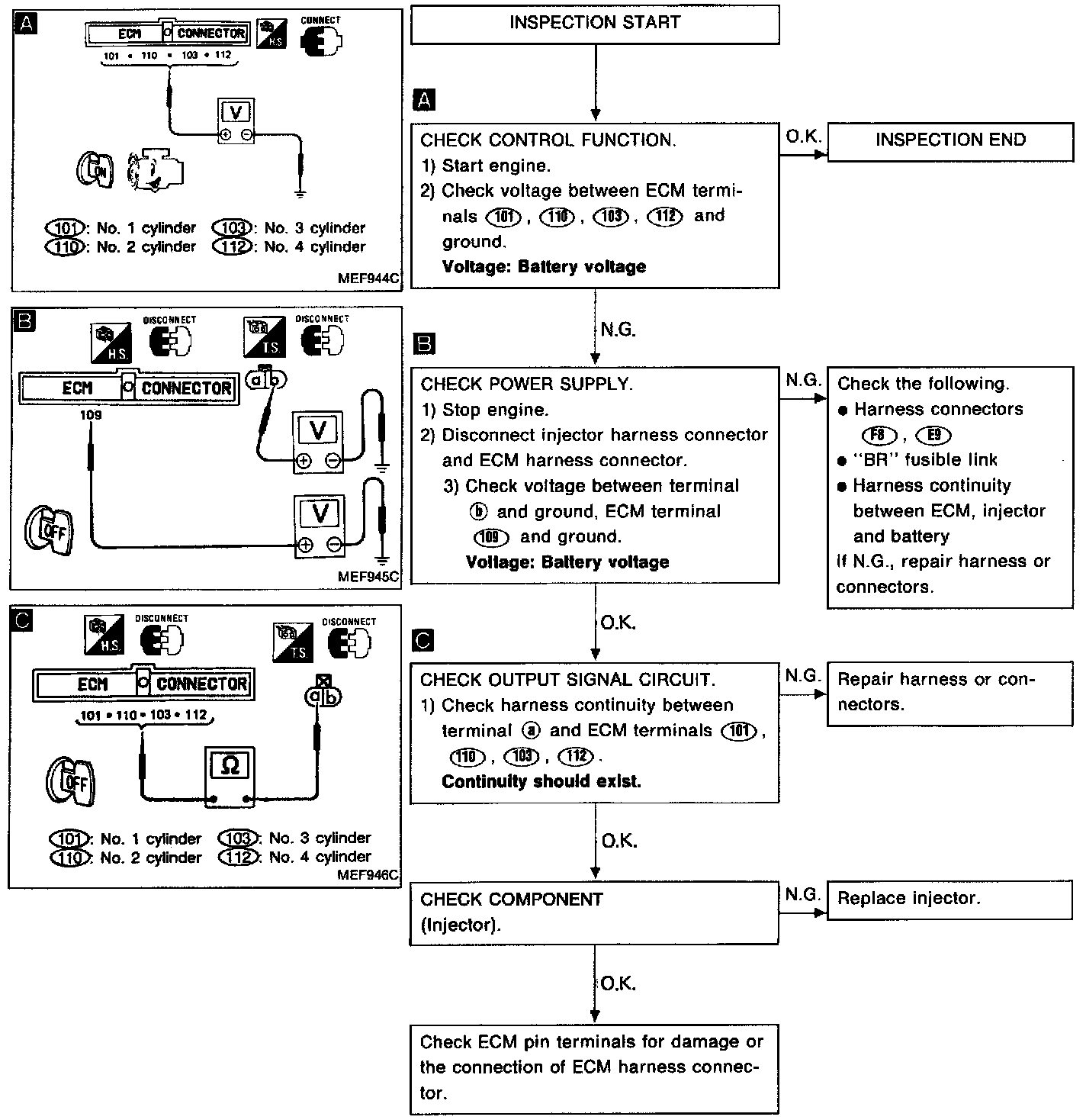

CIRCUIT TEST

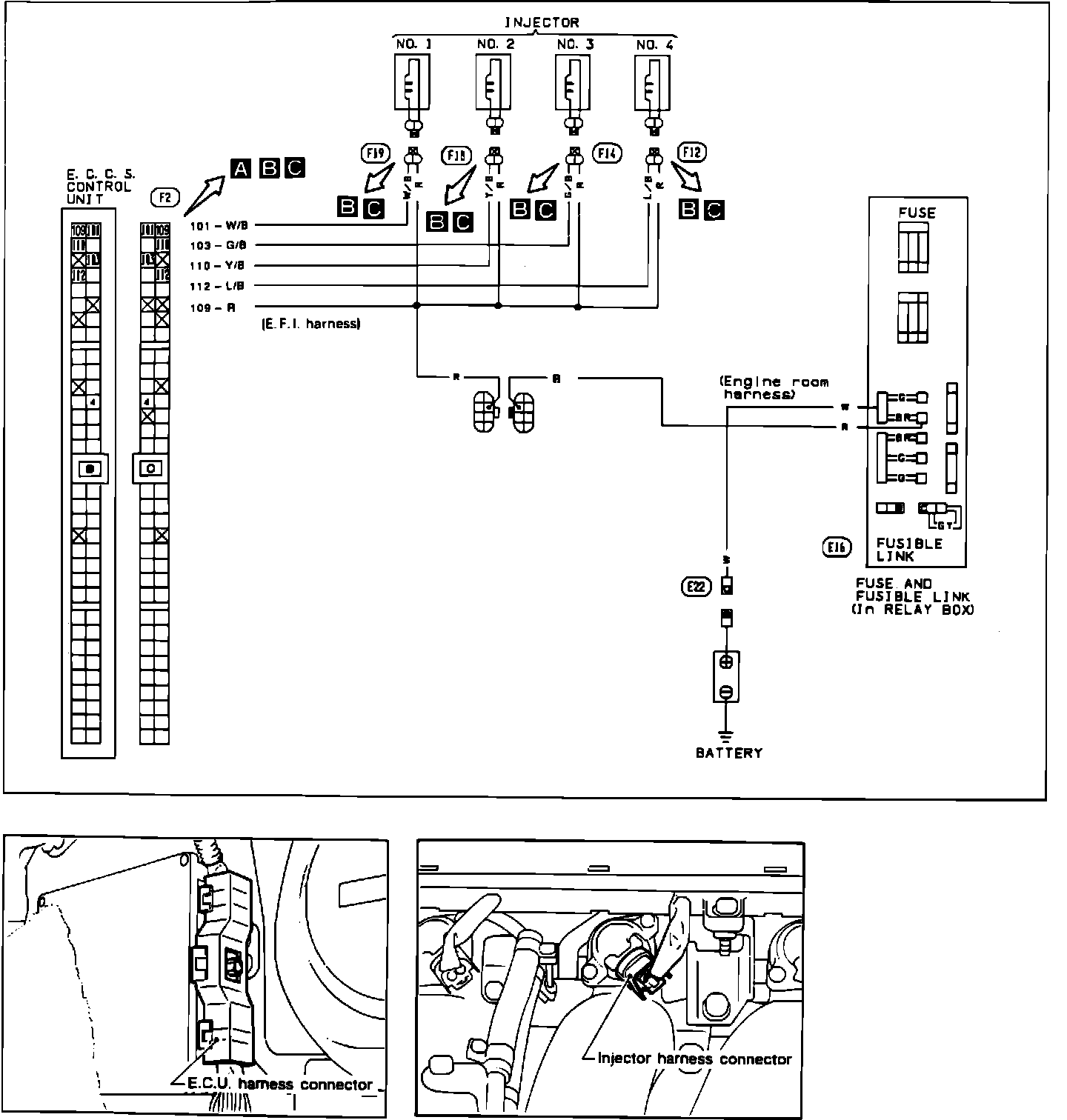

Fuel Injector Circuit Schematic And Component Locations:
CIRCUIT DIAGRAM AND COMPONENT LOCATION
