Auxiliary Air Control (AAC) Valve Circuit

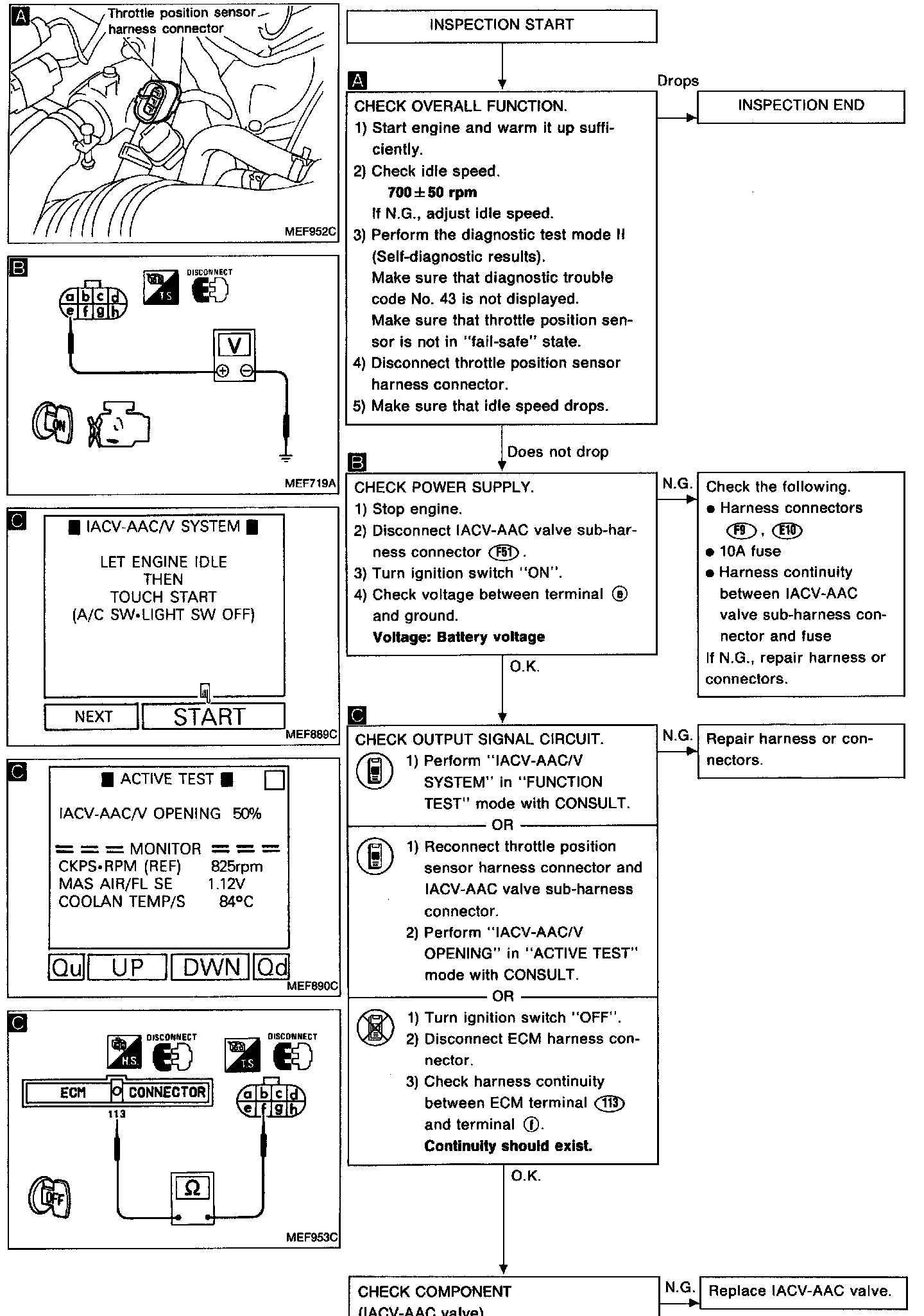

>P`2Auxiliary Air Control (AAC) Valve Circuit Diagnostic Chart:

CIRCUIT TEST IMAGE

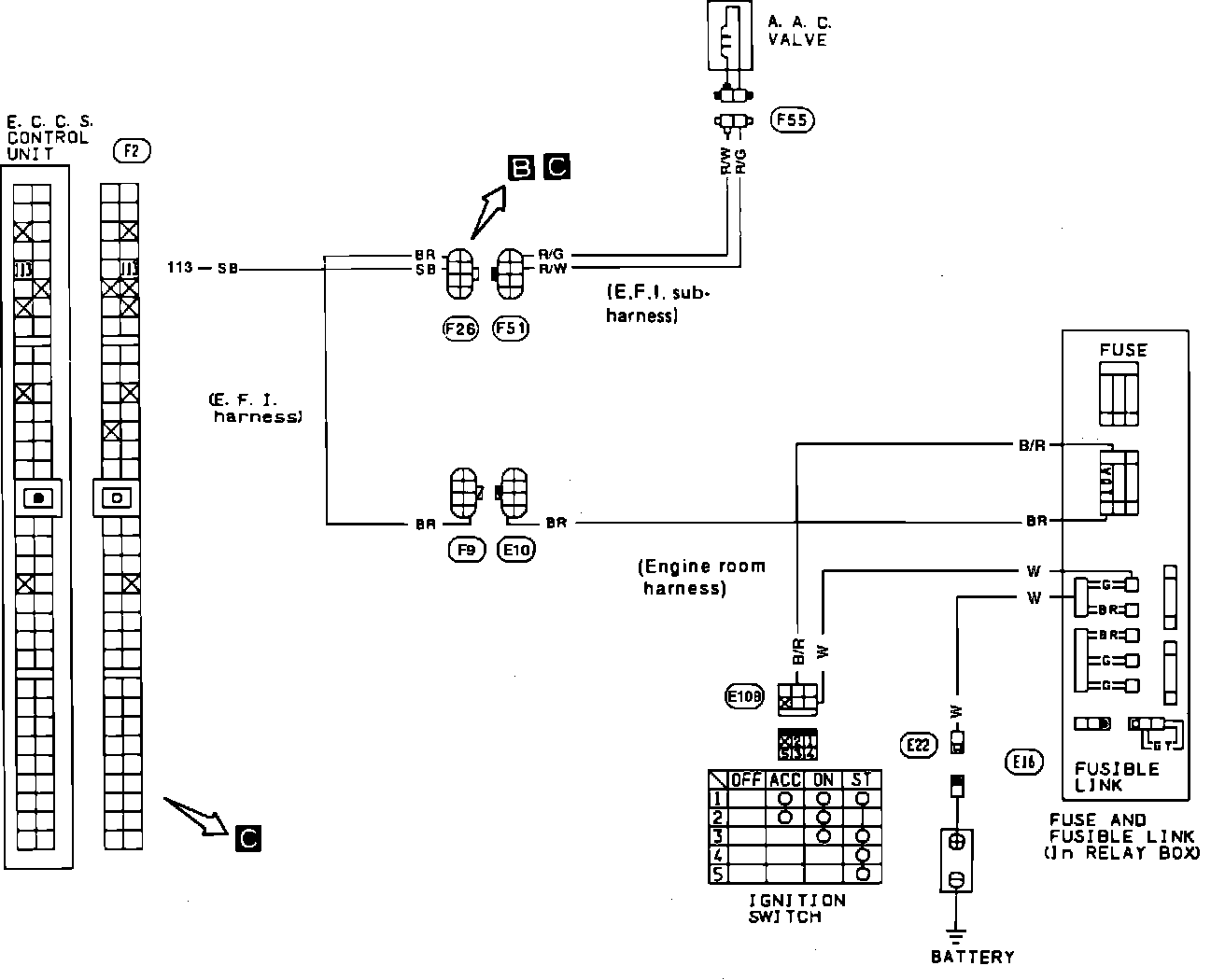

Auxiliary Air Valve:

CIRCUIT DIAGRAM IMAGE

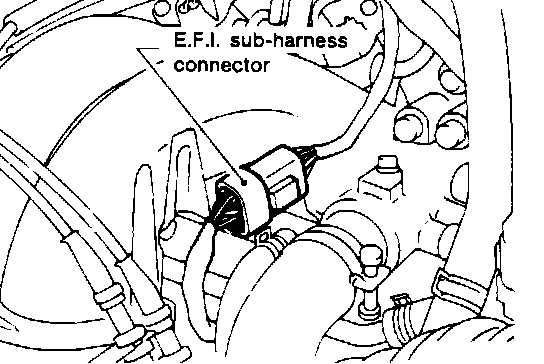

Connector Location:

AAC VALVE CONNECTOR IMAGE
