Air Regulator

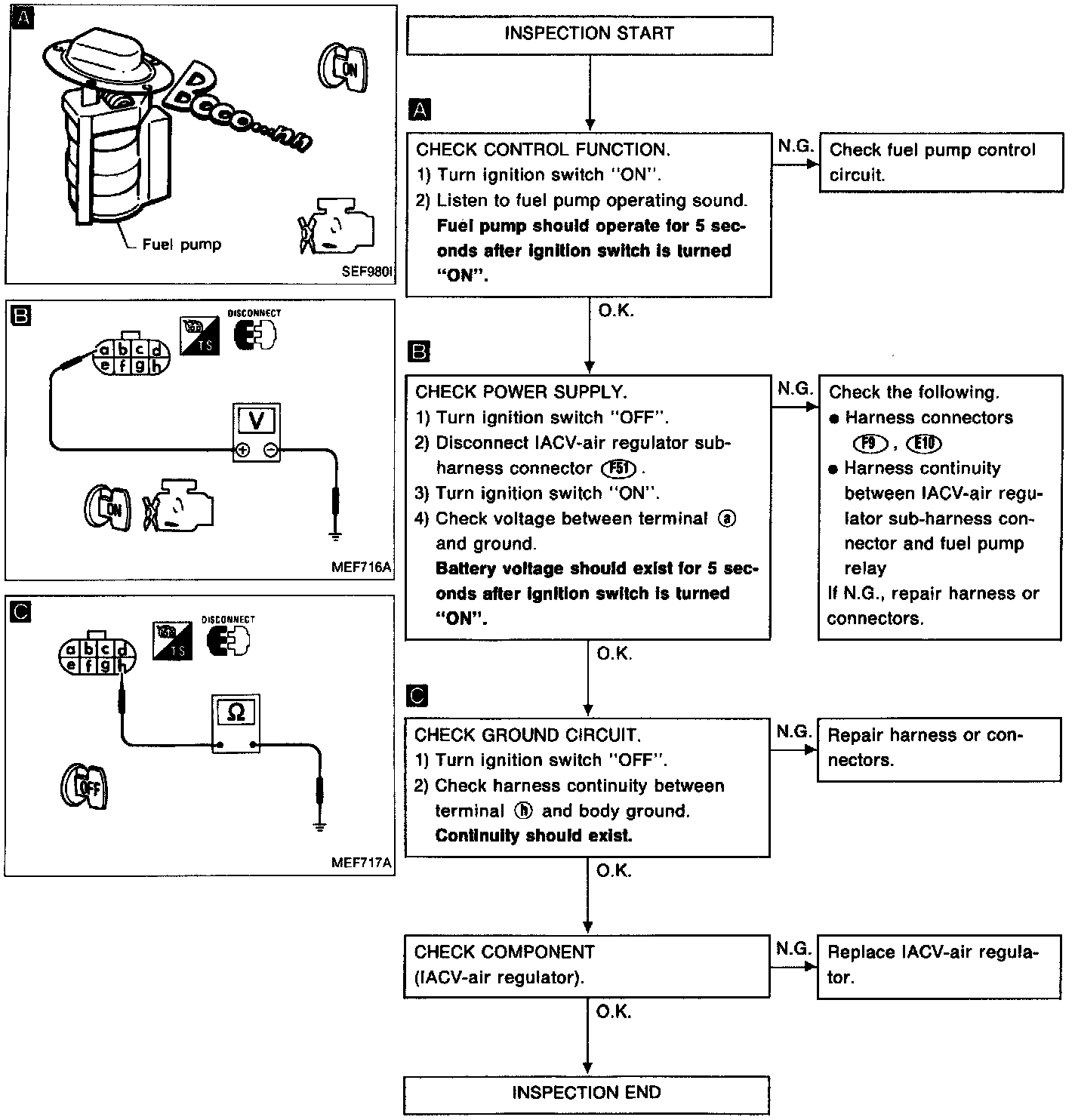

Air Regulator Control Circuit Diagnostic Chart:





CIRCUIT TEST IMAGE

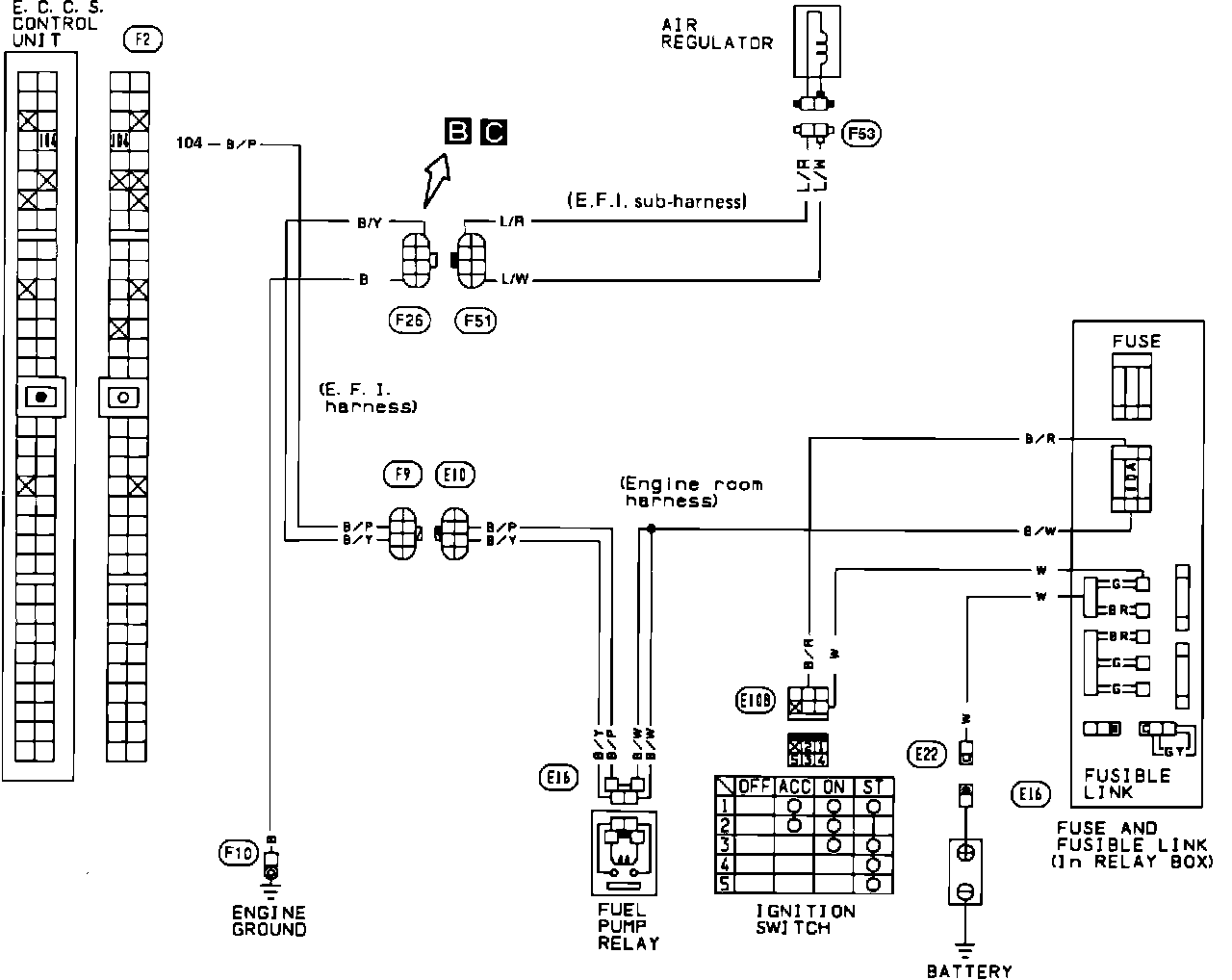

Idle Air Control Valve:





CIRCUIT DIAGRAM IMAGE

Connector Location:





AIR REGULATOR AND RELAY CONNECTORS IMAGE
