Air Induction Valve Control

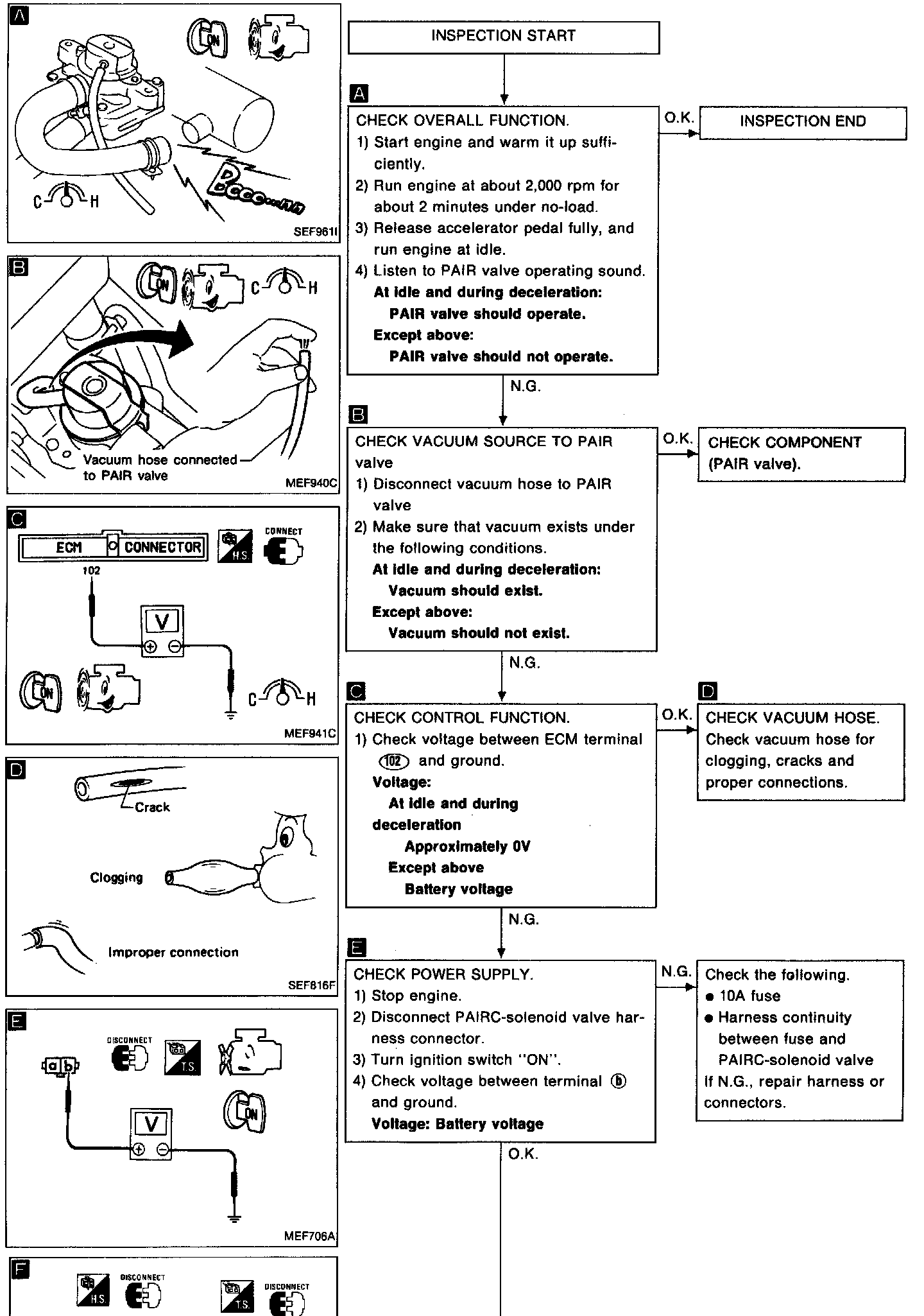

�UQ2Air Induction Valve (AIV) Control Circuit Diagnostic Chart:





CIRCUIT TEST IMAGE

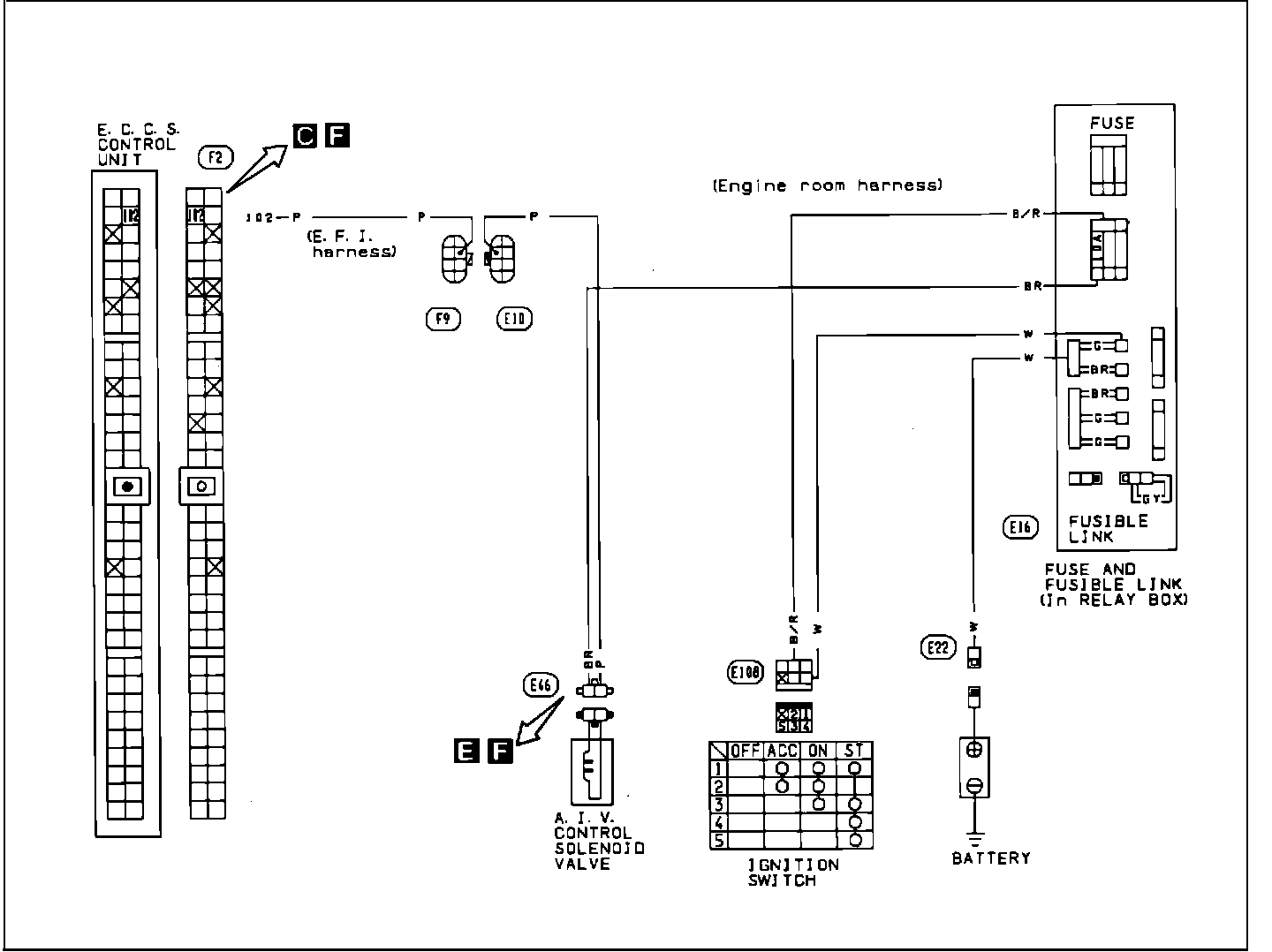

Circuit Diagram:





CIRCUIT DIAGRAM IMAGE

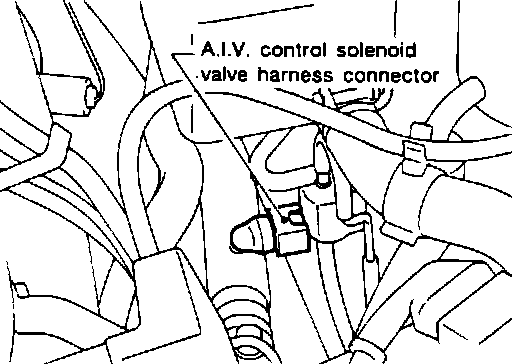

Connector Location:





SOLENOID CONNECTOR IMAGE
