Tach Filter: Testing and Inspection

Ignition Resistor Test:

1. Disconnect the resistor harness connector.

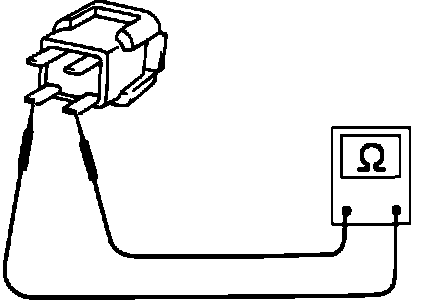

2. Using an ohmmeter, measure the resistance between the terminals as shown in the image.

RESISTANCE:
Approximately 2.2 K ohm

3. Replace the resistor if it fails the test.
