Power Steering Pressure Switch: Testing and Inspection

Power Steering Pressure Switch Test:

1. Disconnect P/S load switch harness connector.
2. Connect an ohmmeter between the switch side harness terminals.

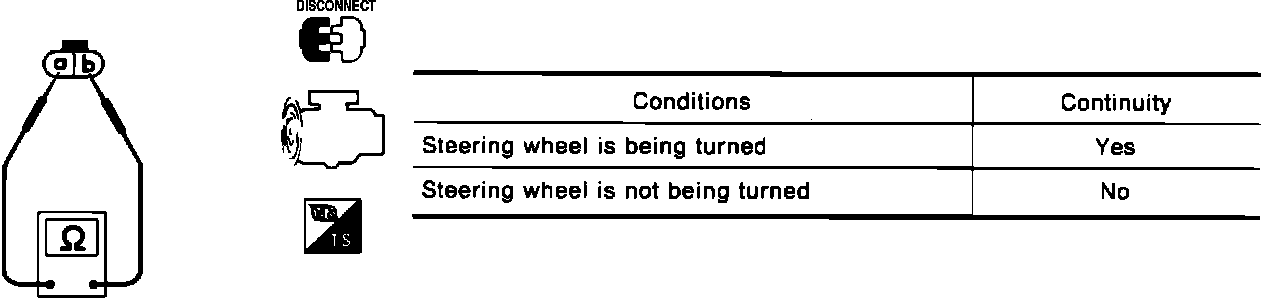

3. Start the engine and check for continuity as shown in image.
