Idle Up Control Valve: Testing and Inspection

FICD Solenoid Test:

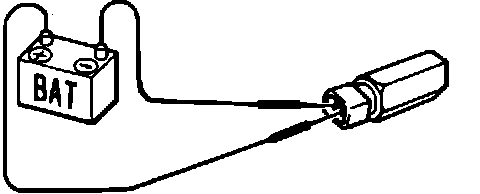

1. Apply battery voltage to the terminals as shown. A clicking sound should be heard. If not proceed to step #2.

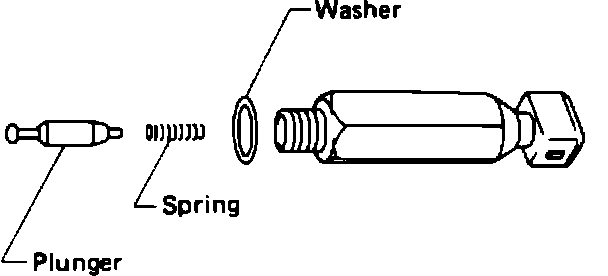

Fig. 138 FICD Inspection:

2. Remove the solenoid and check for sticking plunger or broken spring.
Replace the solenoid if it fails the above test.
