Exhaust Manifold: Service and Repair

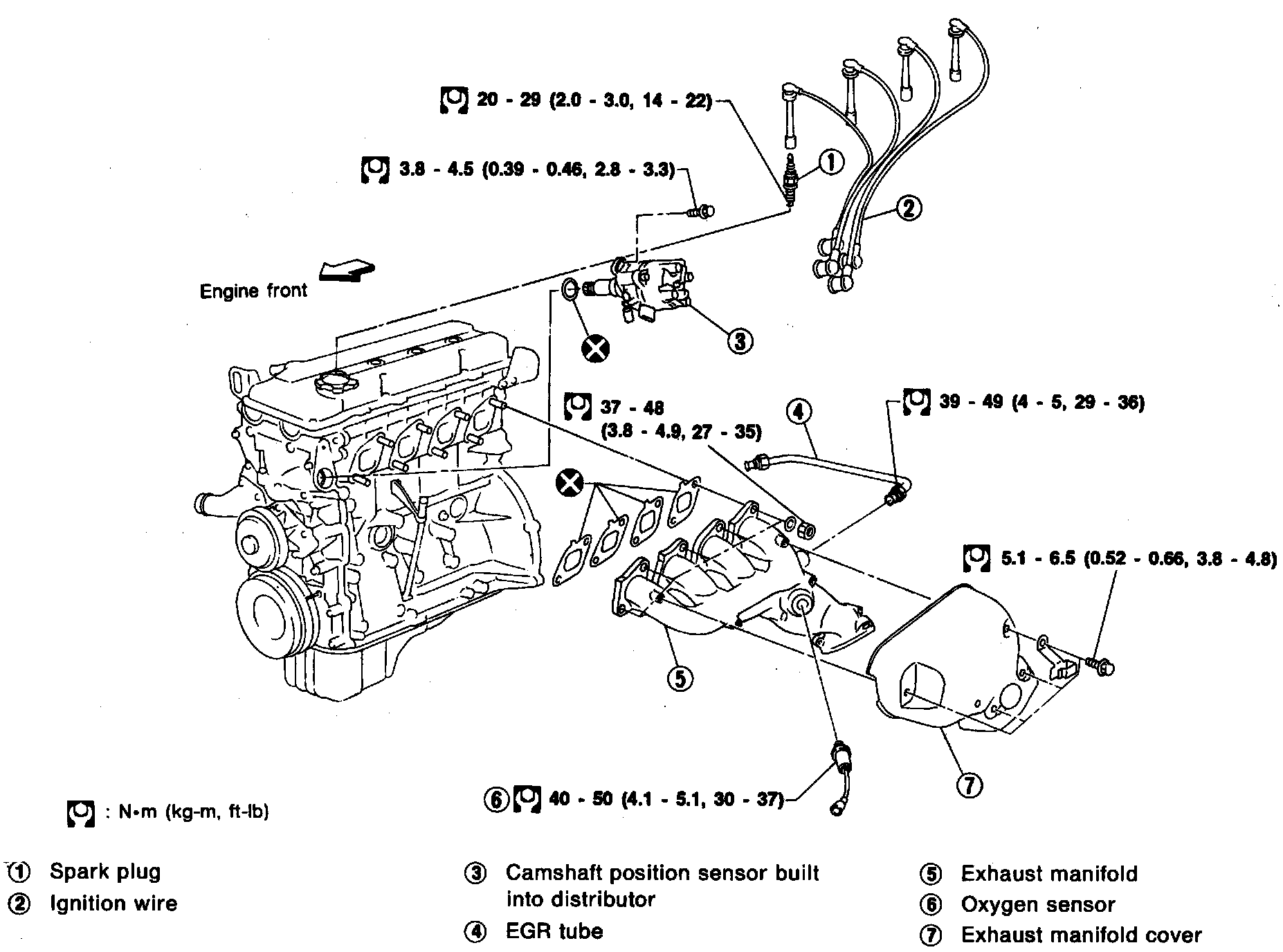

Fig. 5 Exploded View Of Engine Righthand Outer Components:

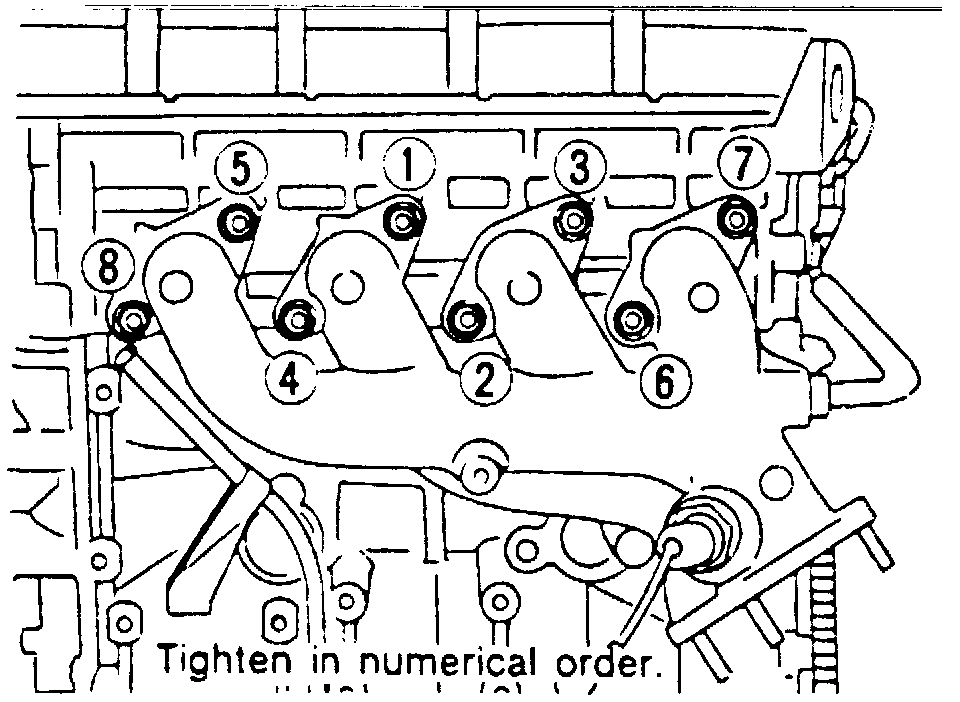

Fig. 6 Exhaust Manifold Nut Tightening Sequence:
Refer to Figs. 5 and 6 for exhaust manifold service.
Refer to Figs. 5 and 6 for exhaust manifold service.
