Water Pump: Service and Repair

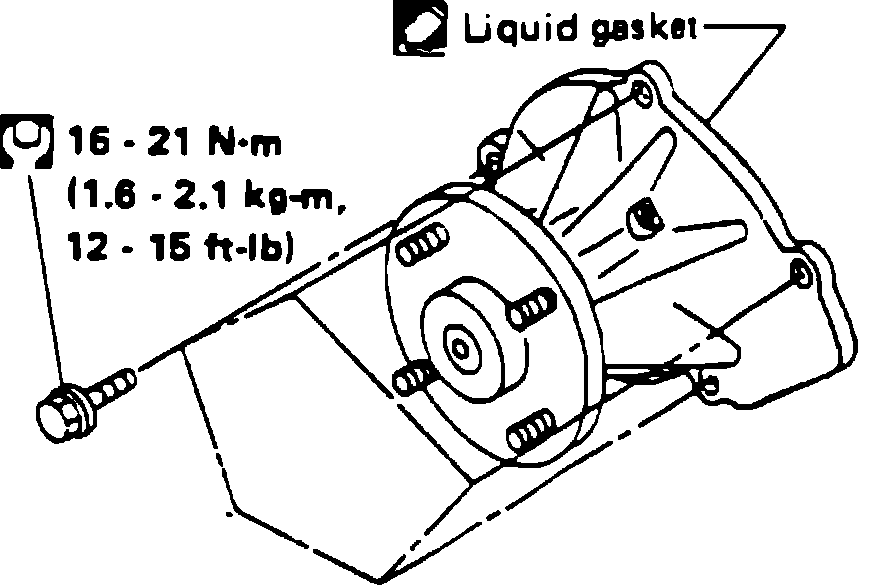

Fig. 27 Water Pump Replacement:

1. Disconnect battery ground cable and drain cooling system.
2. Remove drive belts for compressor, power steering, and alternator.
3. Remove water pump pulley, then the water pump and gasket, Fig. 27.
4. Reverse procedure to install, using new gasket.
