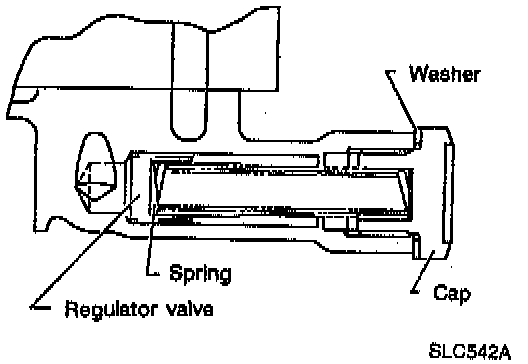

Oil Pressure Regulator Valve: Testing and Inspection

1. Visually inspect components for wear and damage.
2. Check the oil pressure regulator valve sliding surface and valve spring.
3. Coat regulator valve with engine oil. Check that it falls smoothly into the valve hole by its own weight.
4. Replace the regulator valve set or oil pump assembly, if damaged.
