Oil Pressure Regulator Valve: Service and Repair

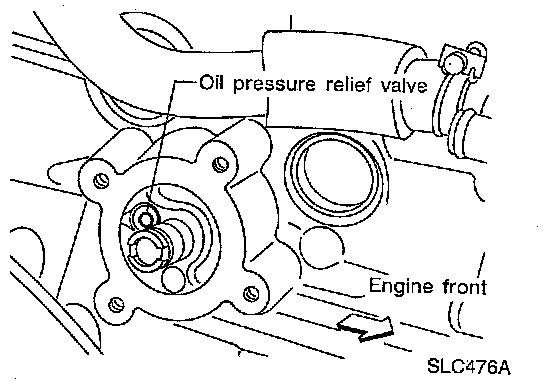

Inspect the oil pressure relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove the valve by prying it out with a suitable tool.
Install a new valve by tapping it in place.
