Valve Seat: Testing and Inspection






^ Check valve seats for pitting at contact surface. Resurface or replace if excessively worn.
^ Before repairing valve seats, check valve and valve guide for wear. If they have worn, replace them. Then correct valve seat.

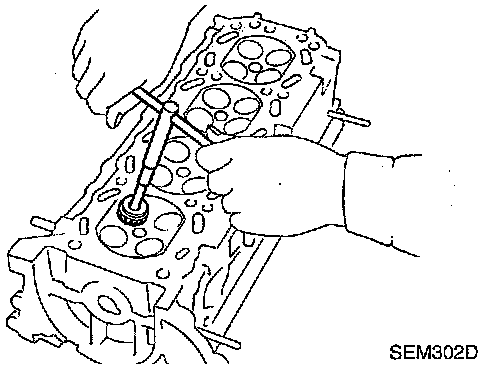

^ Use both hands to cut uniformly.
