Temperature Gauge: Testing and Inspection

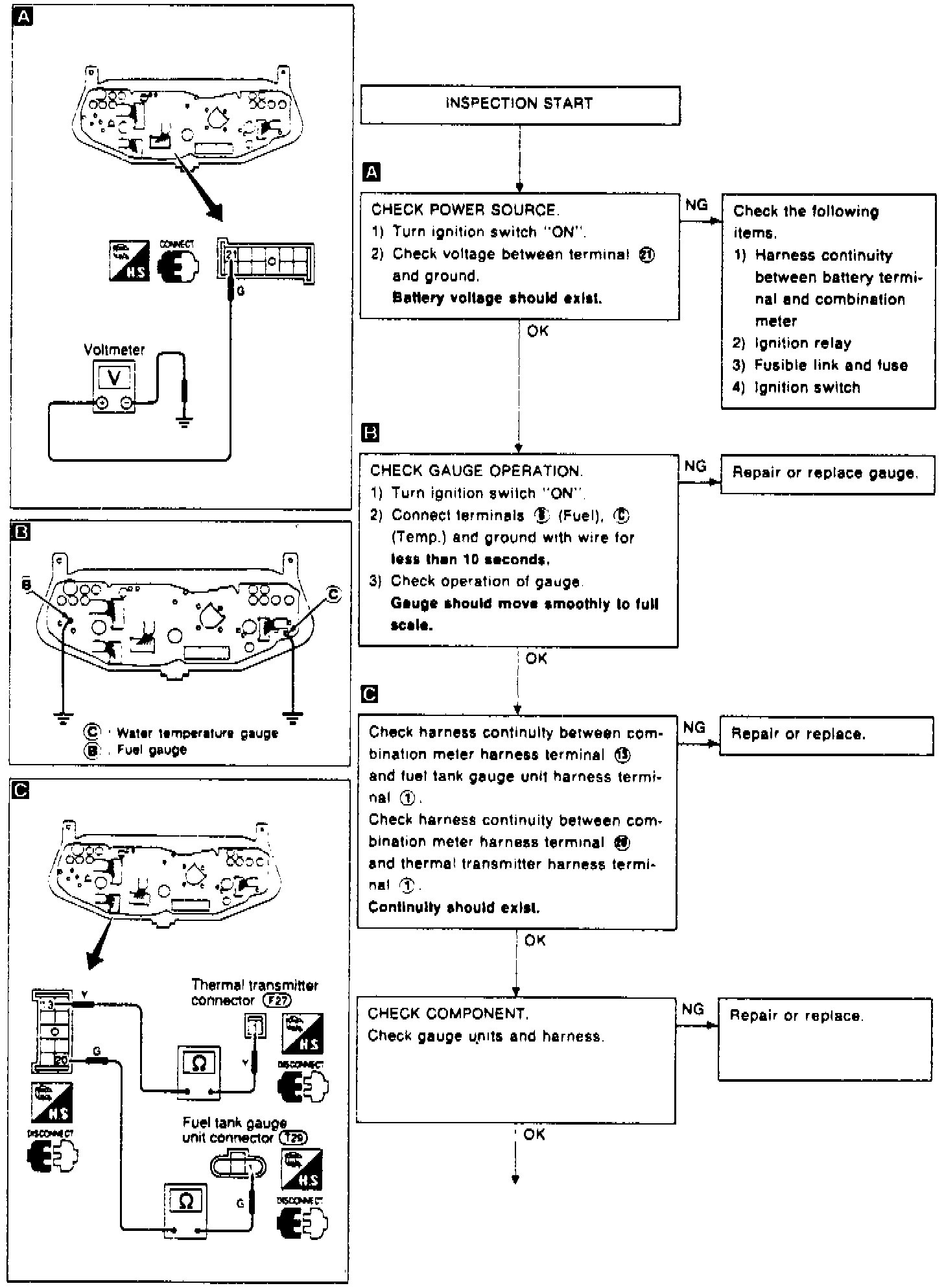

Fig. 17 Fuel Gauge & Water Temperature Gauge Inspection (Part 1 Of 2):

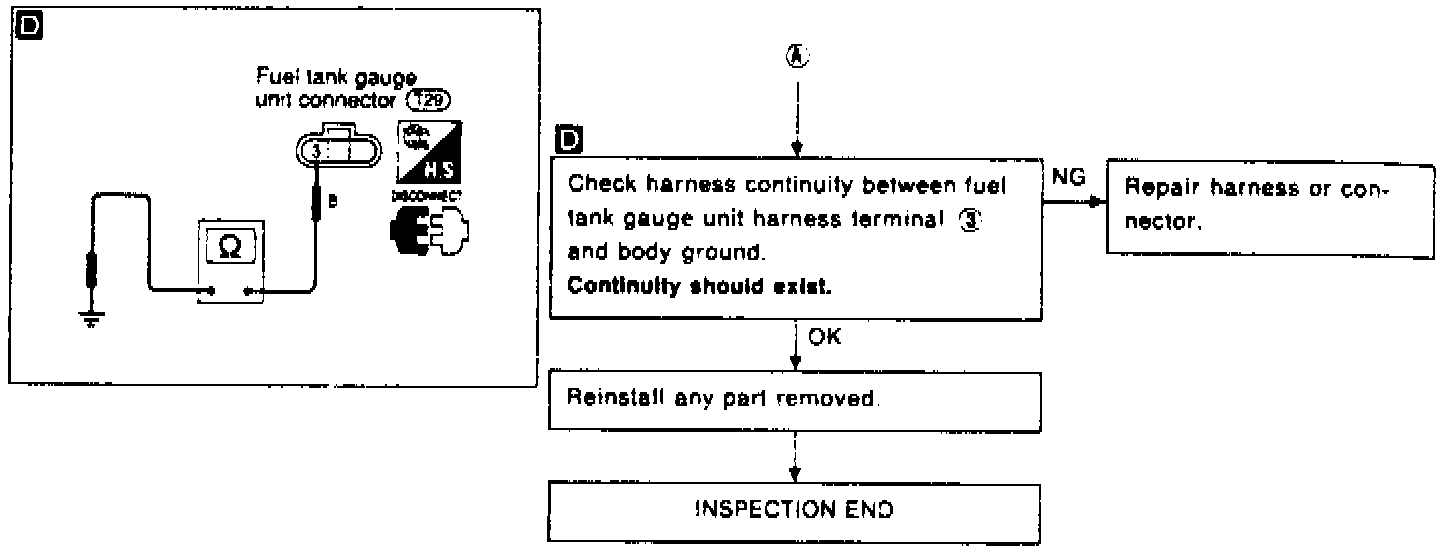

Fig. 17 Fuel Gauge & Water Temperature Gauge Inspection (Part 2 Of 2):

Refer to Fig. 17 for fuel and/or temperature gauge diagnosis.
