240SX Convertible L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
R Connectors, Room
R Connectors, Room

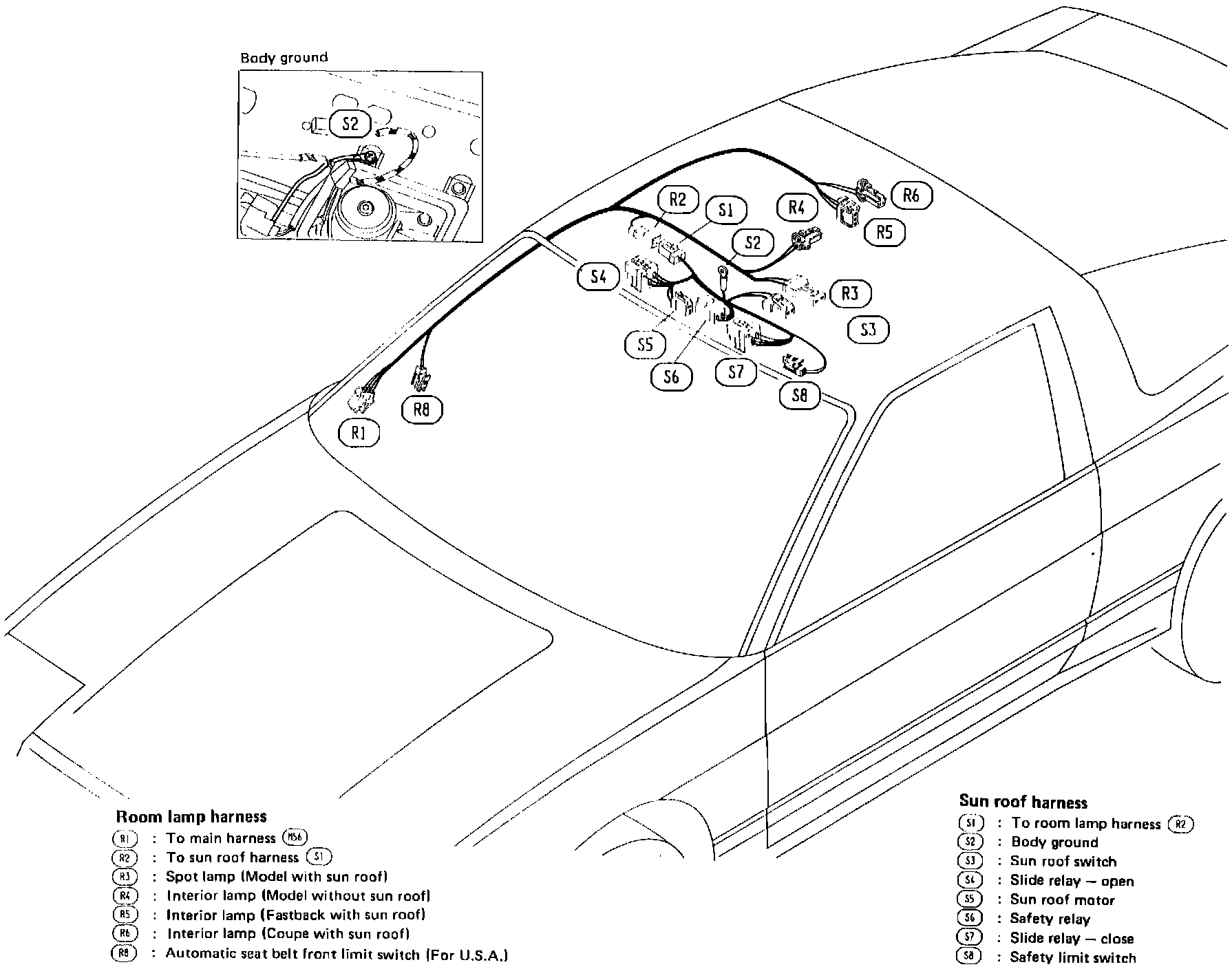

Harness Layout: Room Lamp And Sun Roof Harness:
