FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1994
>>
240SX Convertible L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Large Diff. Between Set Speed & Actual Speed
Large Diff. Between Set Speed & Actual Speed

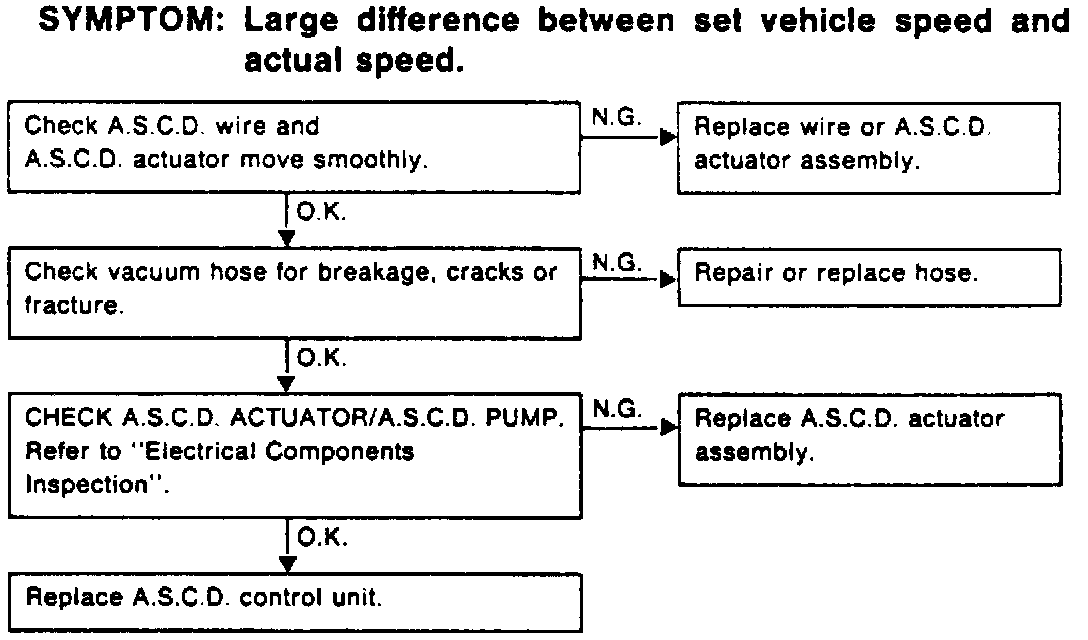

Fig. 49 Test 3: Large Difference Between Set Vehicle Speed & Actual Speed:
