Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Accel Switch Will Not Operate

Accel Switch Will Not Operate

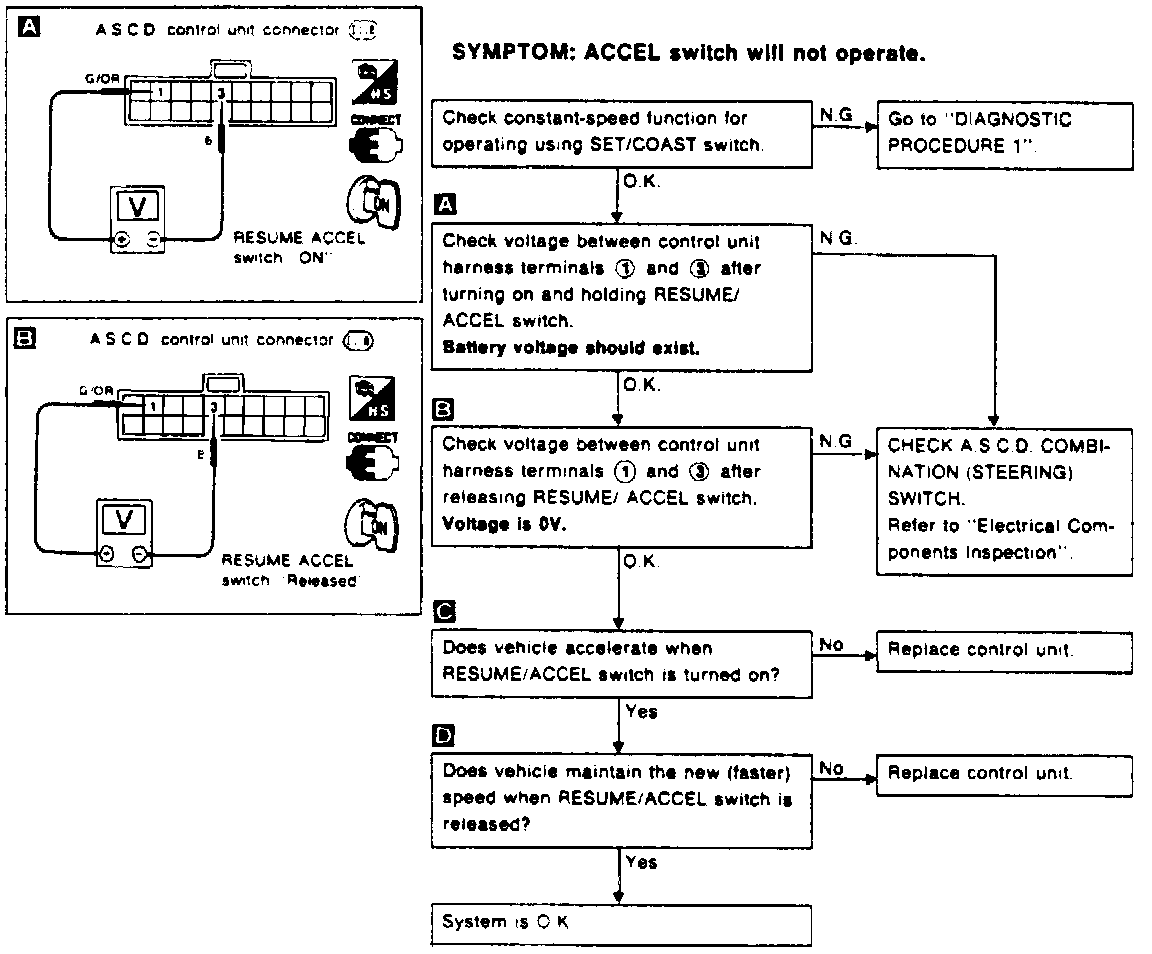

Fig. 51 Test 5: ACCEL Switch Will Not Operate:
